Description

Descriptions

  • High performance drill
  • Suitable for materials up to 1200N/mm2

Features

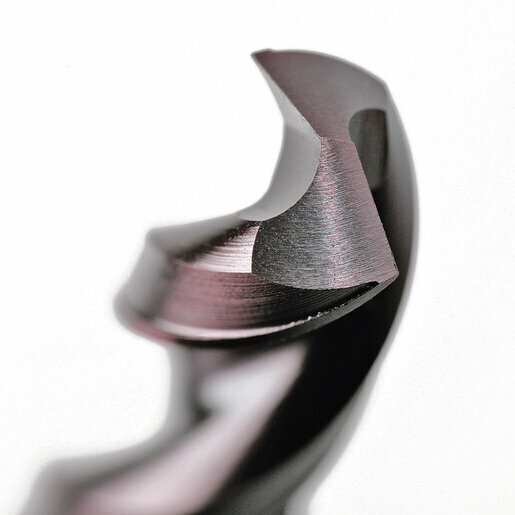

  • Point geometry ensures high strength
  • Parabolic flute design for optimal chip transportation
  • TiAlN for longer tool life

Specifications

  • Designation: NH
  • Material: High Speed Steel Cobalt
  • Finish: TiAIN
  • Shank Form: A
  • Geometry: R40°
  • Point Type: 130°
  • Shank Tolerance: h8
  • Standard: DIN 1897

Specifications

  • AIMS SKU A0004725
  • Brand Sutton Tools
  • Model Number D1511650
  • Barcode Number 9311963422022
  • Thread Diameter (mm) 16.5
  • Overall Length (mm) 119
  • Shank (mm) 60
  • Group Code D151
  • Type Stub Drill Bit
  • System of Measurement DIN 1897,Metric
  • Material High Speed Steel Cobalt (HSS Co5%)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R40
  • Shank Form A
  • Shank Tolerance h8
SKU: A0004725 On Sale

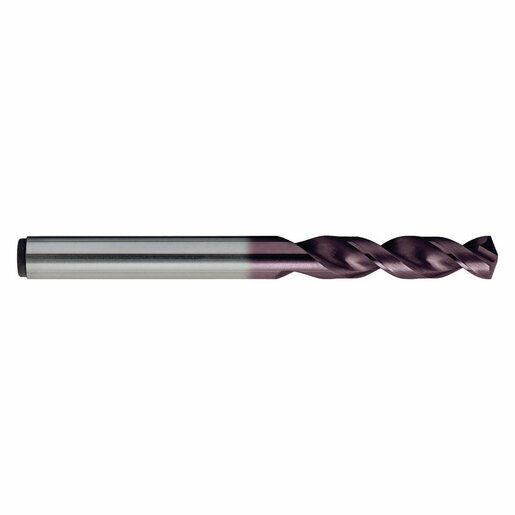

Sutton D1511650 16.5mm Stub Drill Bit - CNC DIN1897 - Cobalt Steel - TiAlN

Sutton Tools Stub Drill Bits - CNC

$159.36
$177.07
