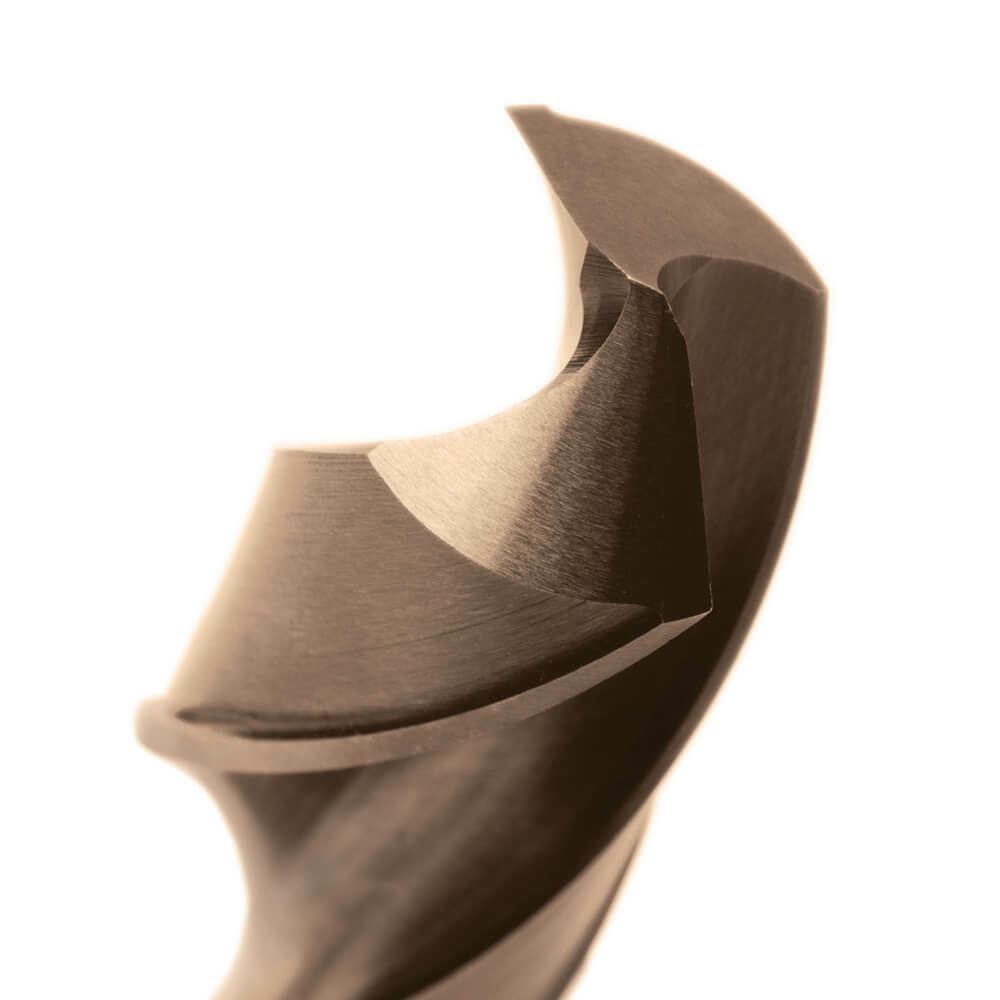

Sutton D1411600 16mm #2 Morse Taper Shank Drill Bit - Cobalt Steel HSS-E

Description

Descriptions

General purpose cobalt drill
Suitable for materials up to 1400N/mm2

Features

Morse Taper Shank Drill Heavy Duty
Cobalt content ensures high abrasion resistance

Specifications

Designation: NH
Material: High Speed Steel Cobalt
Finish: Colour Temp
Maximum Cut Depth: 5XD
Shank Form: MTS
Helix Angle: R30
X: als
Point Tolerance: h8
Point Angle: 118°
Point Form: Form A
Cutting Edges: ul
Standard: DIN 345

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
Optimal for Cast Iron, Malleable – Ferritic- 130 HB
Optimal for Cast Iron – Chilled- 400 HB

Specifications

AIMS SKU A0004385

Brand Sutton Tools

Model Number D1411600

Barcode Number 9311963542300

Morse Taper #2

Thread Diameter (mm) 16

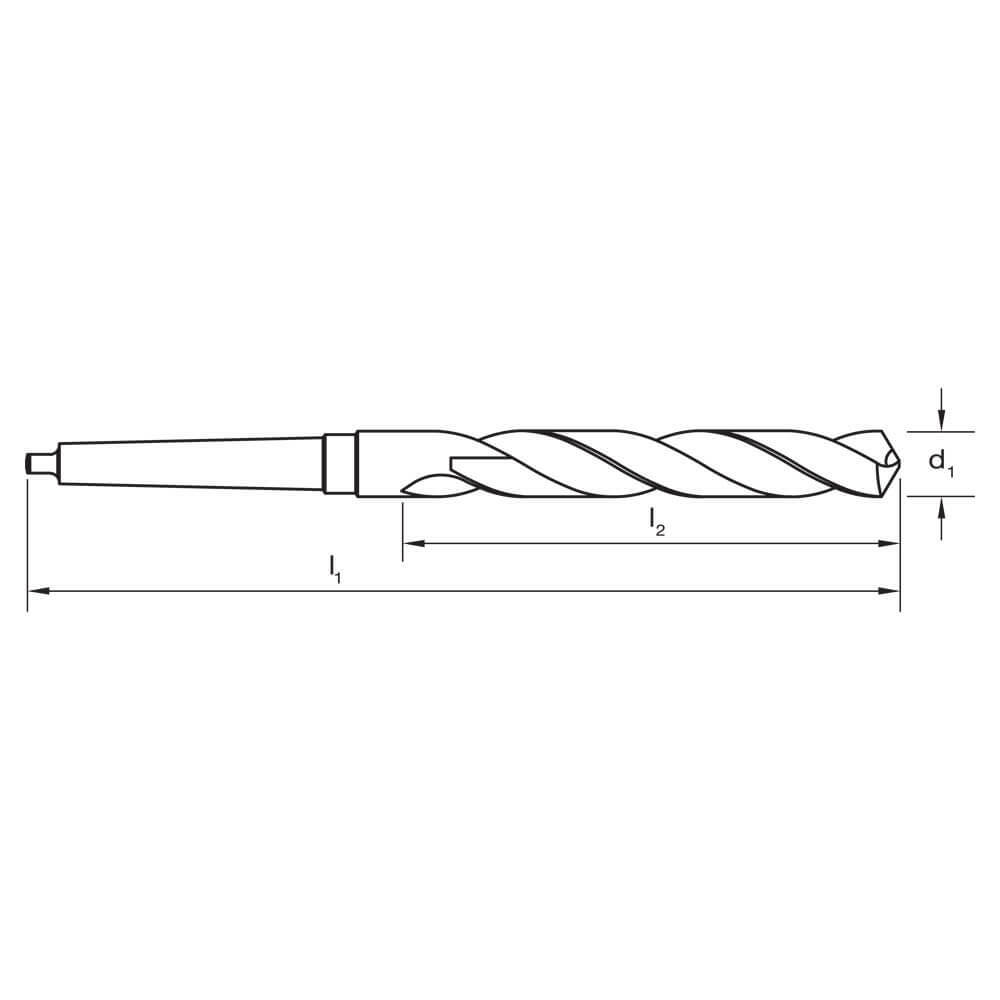

Overall Length (mm) 218

Flute Length (mm) 120

Group Code D141
Type Morse Taper Shank
System of Measurement DIN 345,Metric
Material High Speed Steel Cobalt (HSS Co5%)
Finish Colour Temperature
Helix Angle R30
Shank Form MTS
Point Angle 118
Point Form Form A
Maximum Cut Depth 5XD
Point Tolerance h8
