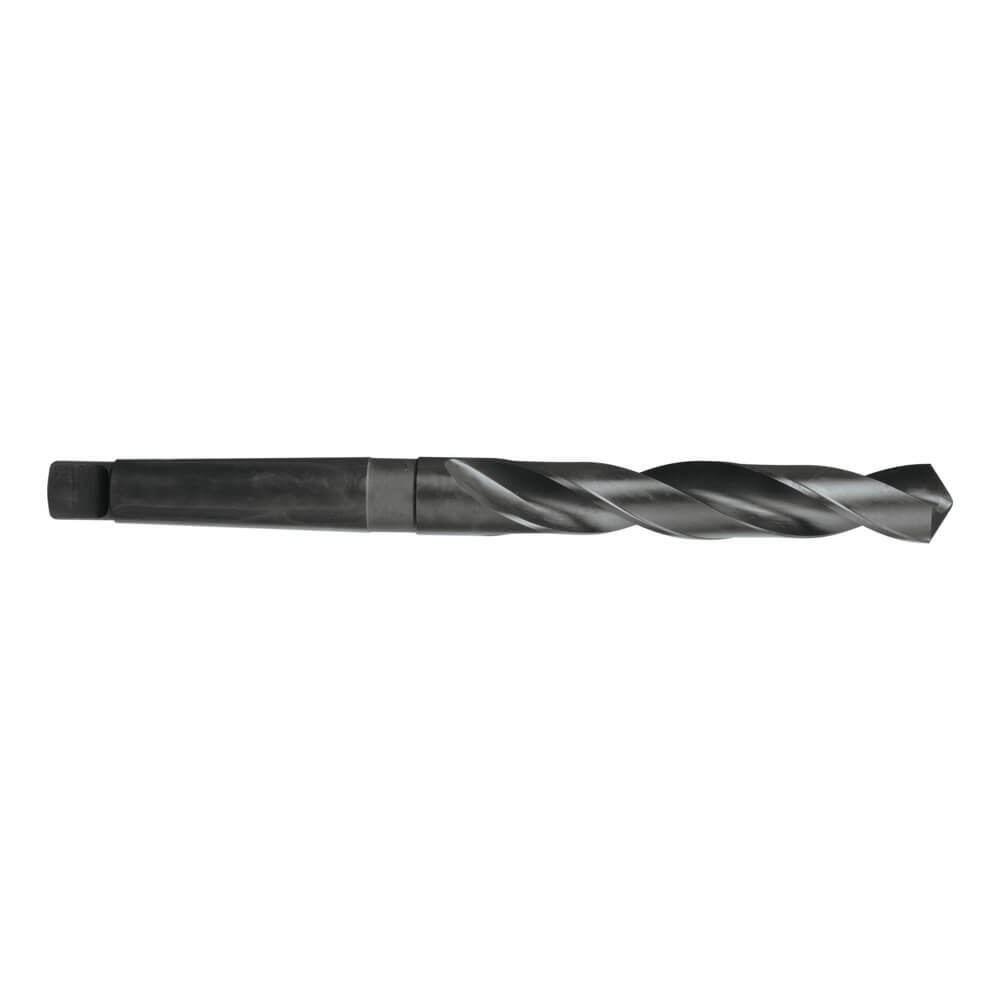

Sutton D1153000 30mm #3 Morse Taper Shank Drill Bit - HSS - Sutton Tools

Description

Description

General purpose drill

Feature

Morse Taper Shank Drill

Specifications

Designation: N
Material: High Speed Steel
Finish: Blue
Maximum Cut Depth: 5XD
Shank Form: MTS
Helix Angle: R30
X: als
Point Tolerance: h8

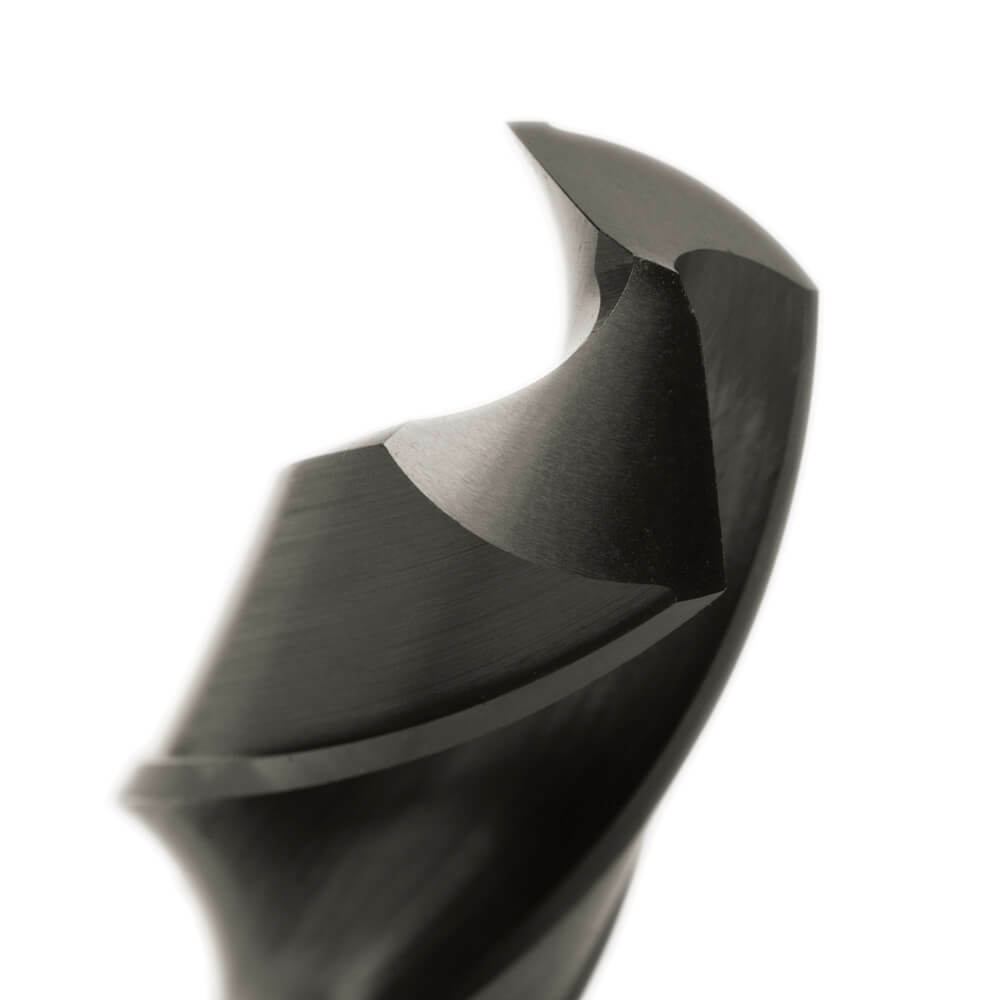

Point Angle: 118°
Point Form: Form A
Cutting Edges: ul
Standard: DIN 345

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Suitable for materials up to 900N/mm2

Specifications

AIMS SKU A0004145

Brand Sutton Tools

Model Number D1153000

Barcode Number 9311963006031

Morse Taper #3

Thread Diameter (mm) 30

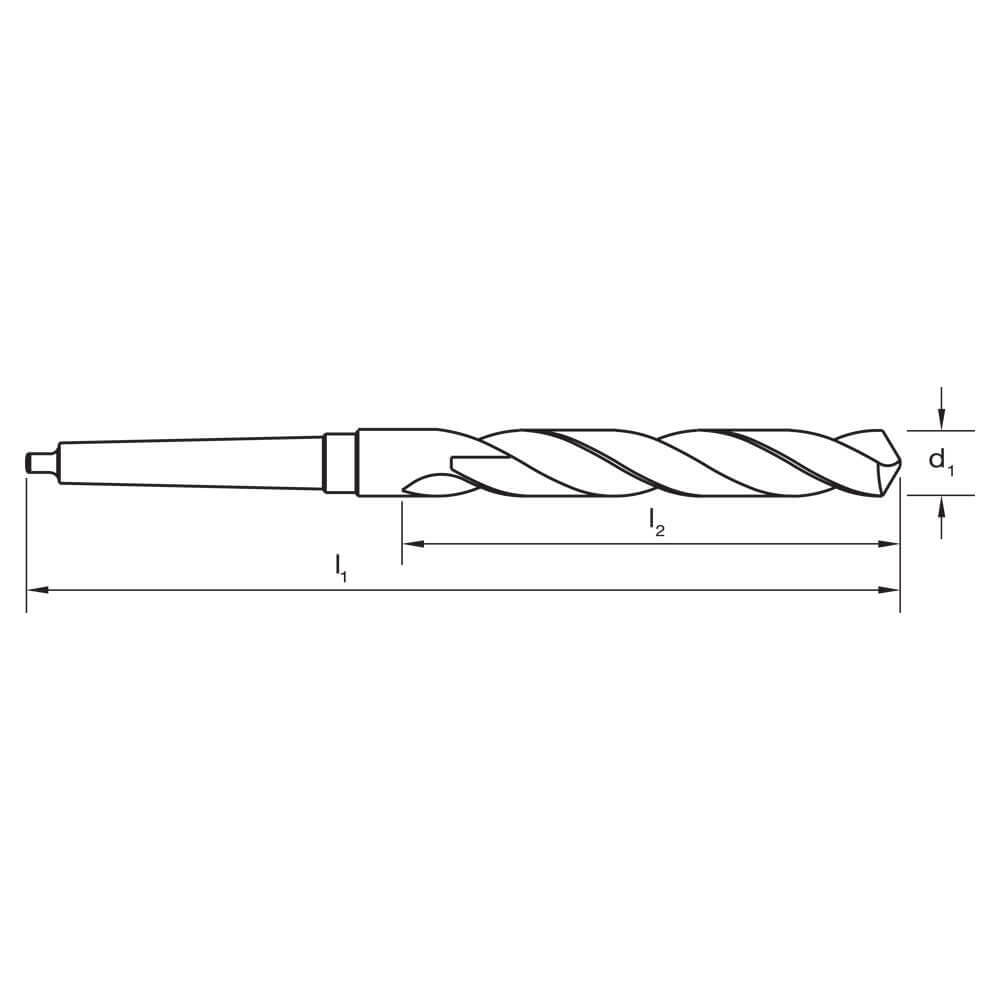

Overall Length (mm) 296

Flute Length (mm) 175

Group Code D115
Type Morse Taper Shank
System of Measurement DIN 345,Metric
Material High Speed Steel (HSS)
Finish Steam Oxide (Blue)
Helix Angle R30
Point Angle 118
Point Form Form A
Maximum Cut Depth 5XD
Point Tolerance h8
