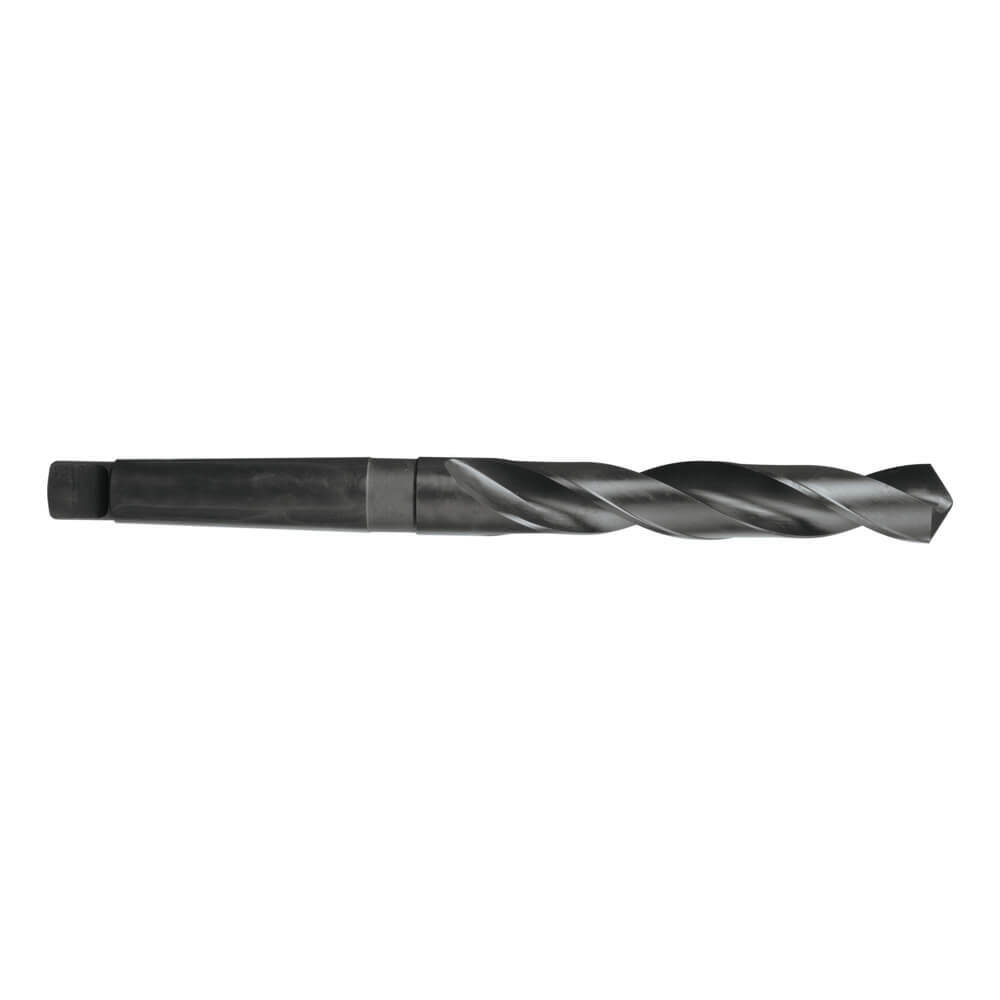

Sutton D1152659 26.59mm #3 Morse Taper Shank Drill Bit - HSS - Sutton Tools

Description

Description

General purpose drill

Feature

Morse Taper Shank Drill

Specifications

Designation: N
Material: High Speed Steel
Finish: Blue
Maximum Cut Depth: 5XD
Shank Form: MTS
Helix Angle: R30
X: als
Point Tolerance: h8

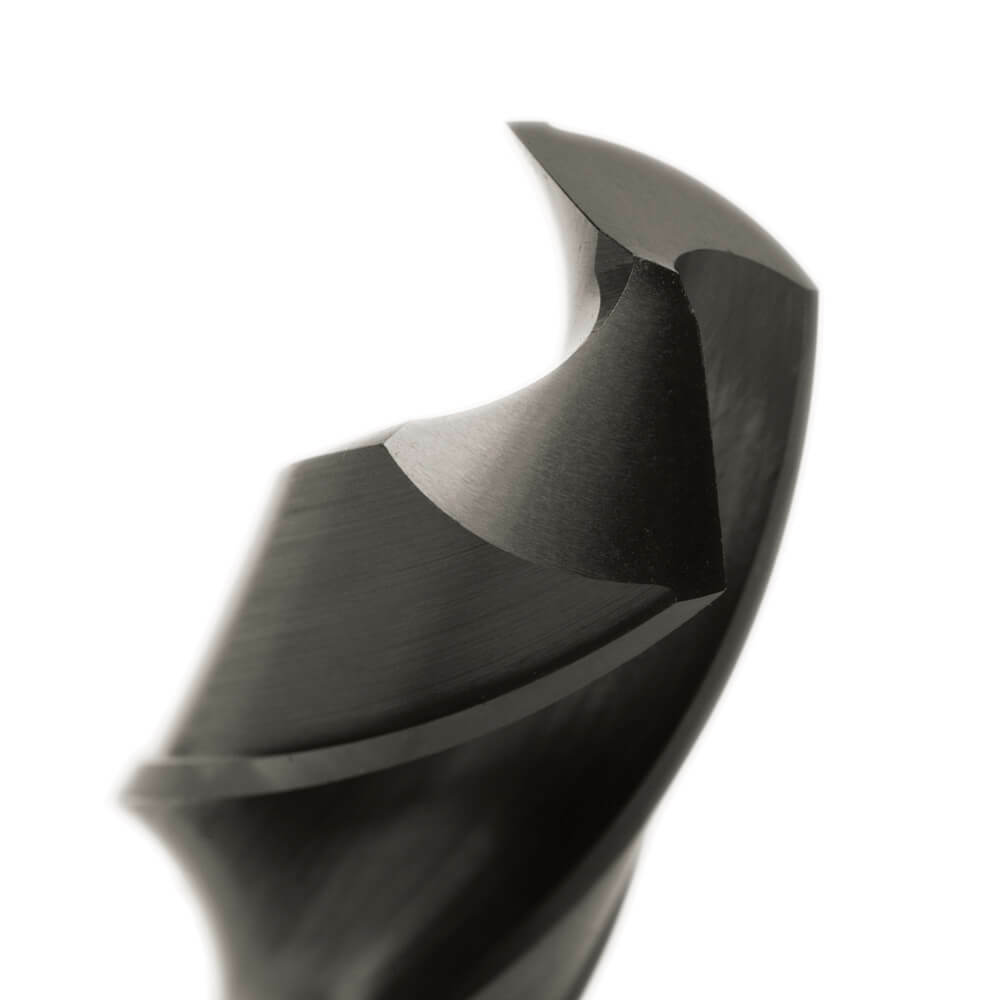

Point Angle: 118°
Point Form: Form A
Cutting Edges: ul
Standard: DIN 345

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Suitable for materials up to 900N/mm2

Specifications

AIMS SKU A0004130

Brand Sutton Tools

Model Number D1152659

Barcode Number 9311963024615

Morse Taper #3

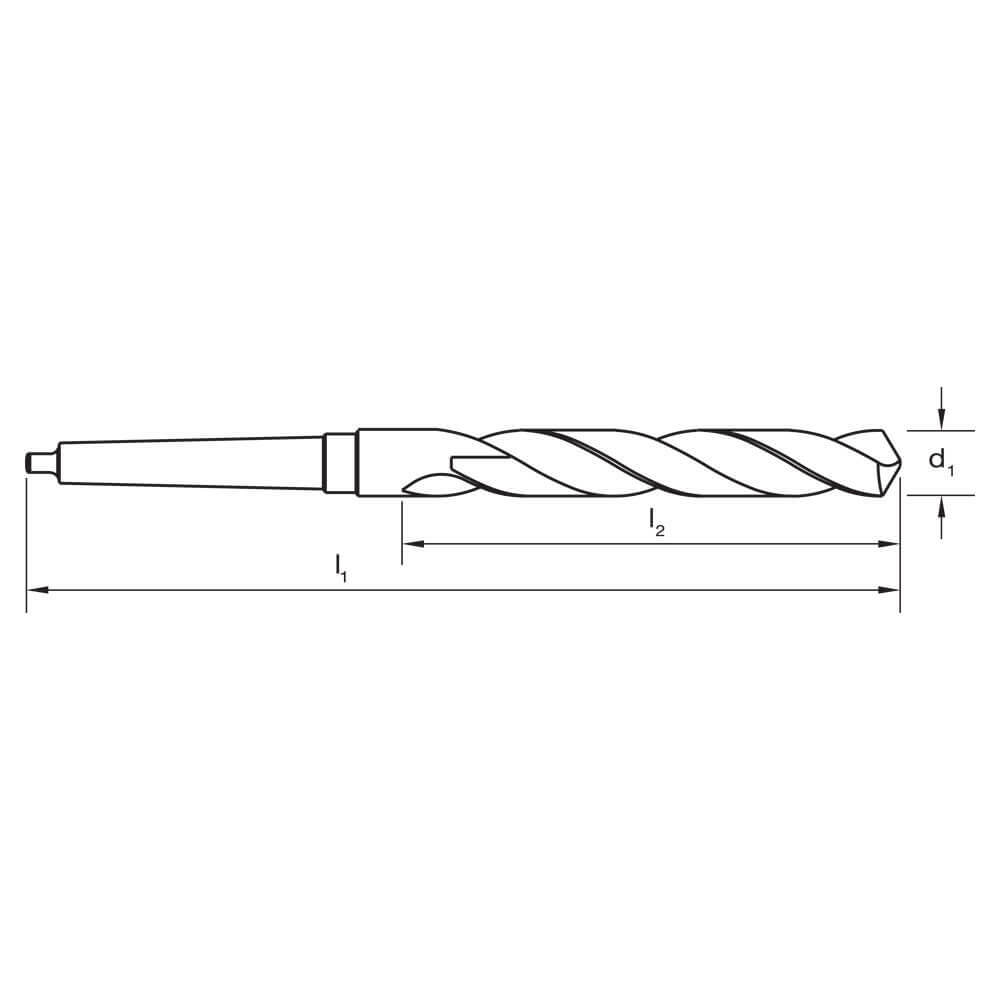

Thread Diameter (mm) 26.59

Overall Length (mm) 291

Flute Length (mm) 170

Group Code D115
Type Morse Taper Shank
System of Measurement DIN 345,Metric
Material High Speed Steel (HSS)
Finish Steam Oxide (Blue)
Helix Angle R30
Point Form Form A
Point Tolerance h8
Point Angle 118
Maximum Cut Depth 5XD
