Description

Descriptions

  • General purpose drill
  • Ideal for long reach type applications

Features

  • For deep hole applications, pecking is recommended
  • Recommended for controlled machine drilling only

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blue
  • Maximum Cut Depth: 8XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8

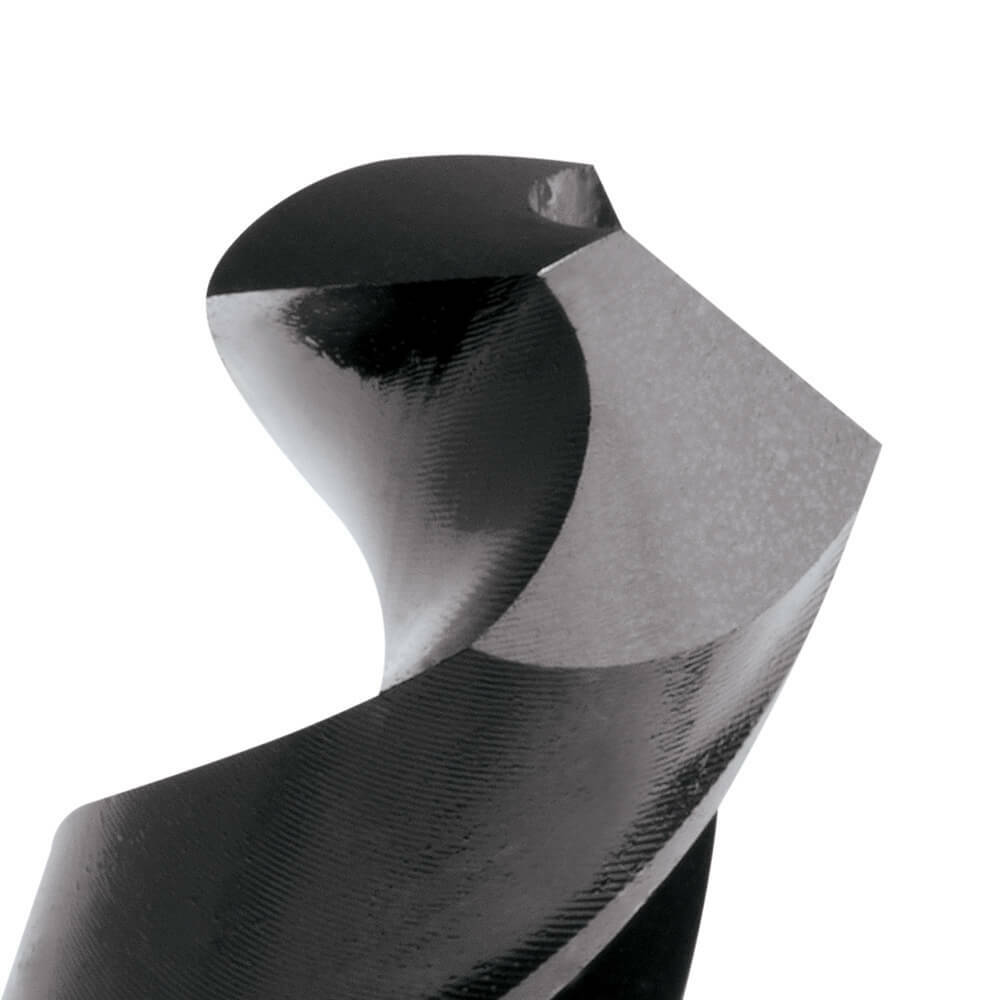

  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: ANSI B94-11

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

  • AIMS SKU A0003961
  • Brand Sutton Tools
  • Model Number D1130970
  • Barcode Number 9311963166575
  • Thread Diameter (mm) 9.7

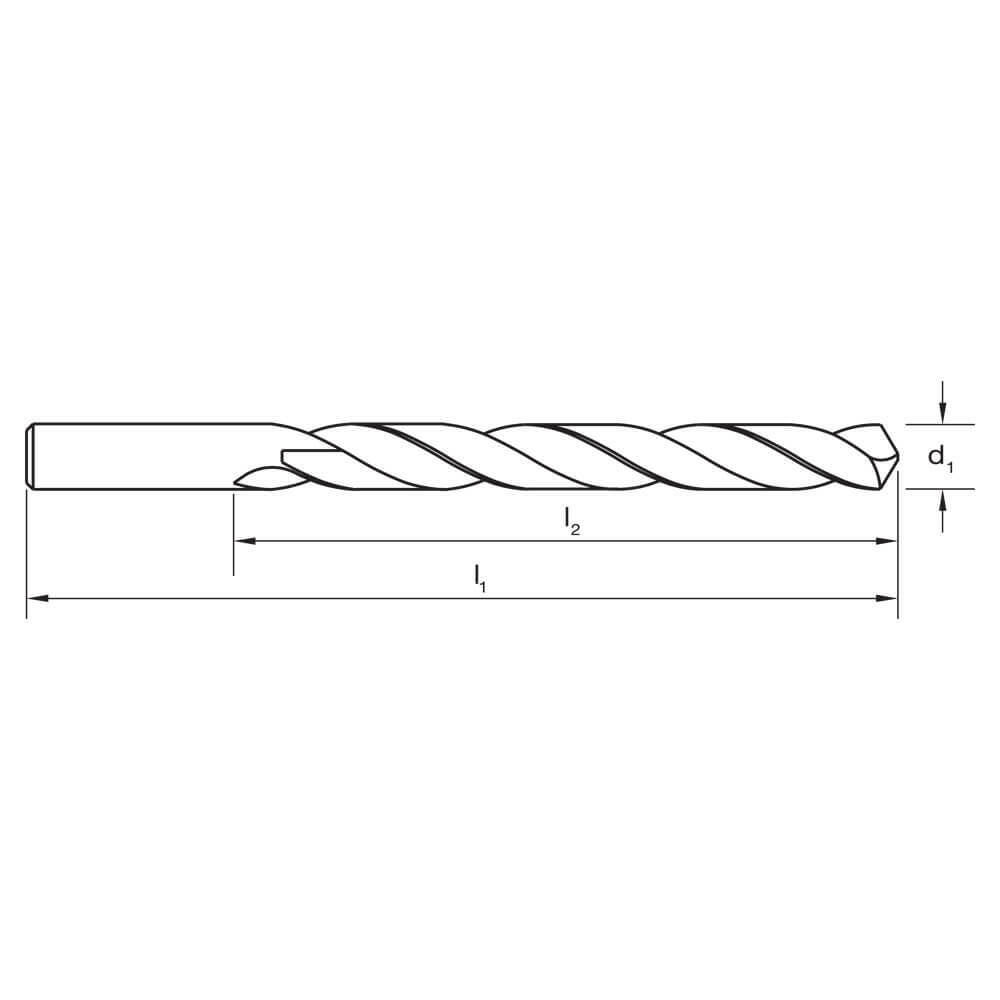

  • Overall Length (mm) 171
  • Flute Length (mm) 108
  • Group Code D113
  • Type Long Drill Bit
  • System of Measurement ANSI B94-11,Metric
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Helix Angle R30
  • Shank Form A
  • Point Angle 118
  • Point Form Form A
  • Maximum Cut Depth 8XD
  • Point Tolerance h8
SKU: A0003961

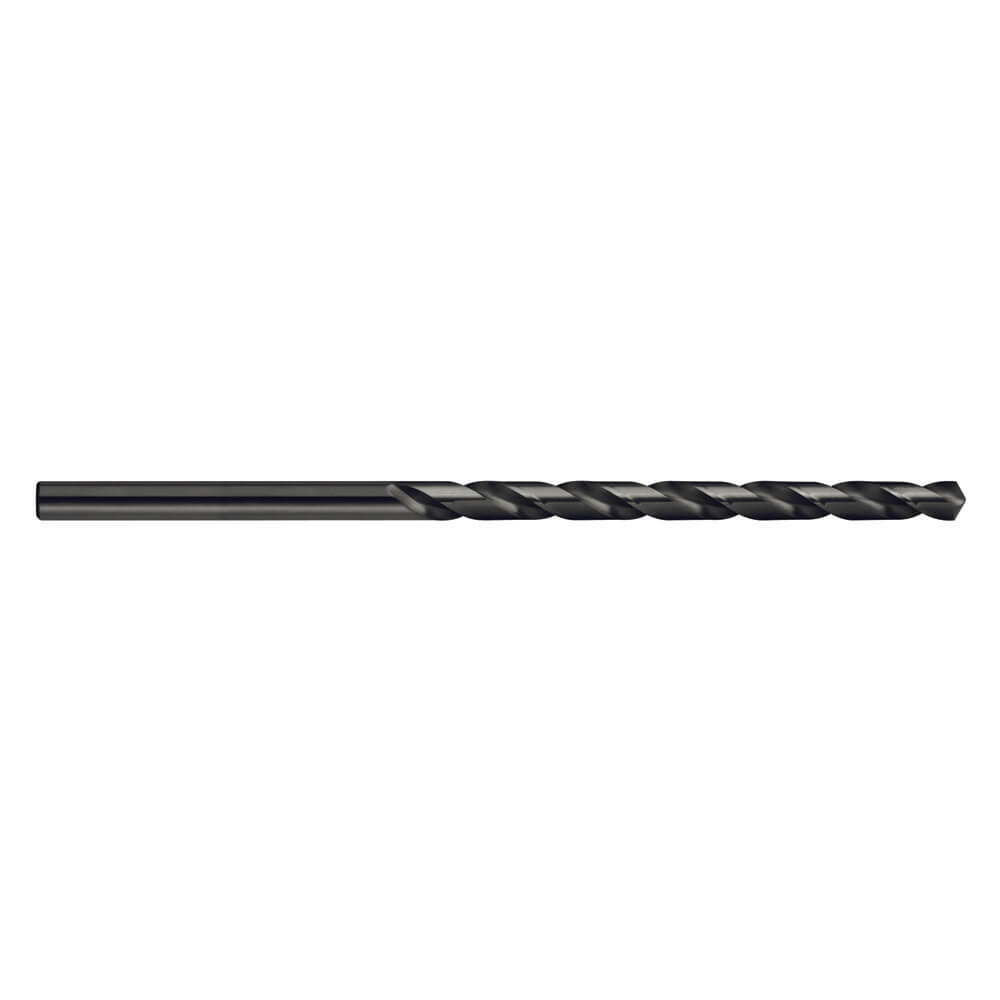

Sutton D1130970 9.7mm Long Drill Bit - ANSI B94-11 - HSS - Pack of 5

Sutton Tools Long Series Drill Bits - Blue Bullet

$190.70
RRP $327.75
SAVE $137.05 (42%)
