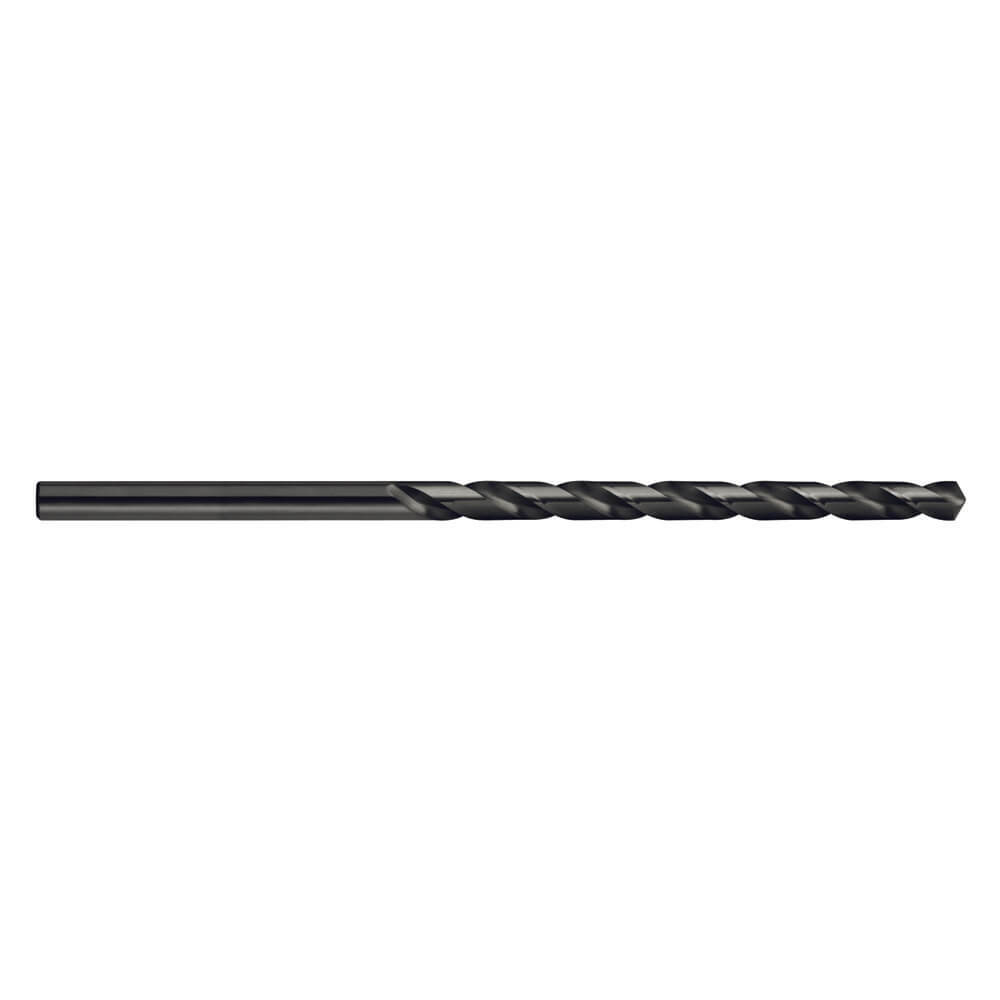

Sutton D1130170 1.7mm Long Drill Bit - ANSI B94-11 - HSS - Pack of 10

Description

Descriptions

General purpose drill
Ideal for long reach type applications

Features

For deep hole applications, pecking is recommended
Recommended for controlled machine drilling only

Specifications

Designation: N
Material: High Speed Steel
Finish: Blue
Maximum Cut Depth: 8XD
Shank Form: A
Helix Angle: R30
X: als
Point Tolerance: h8

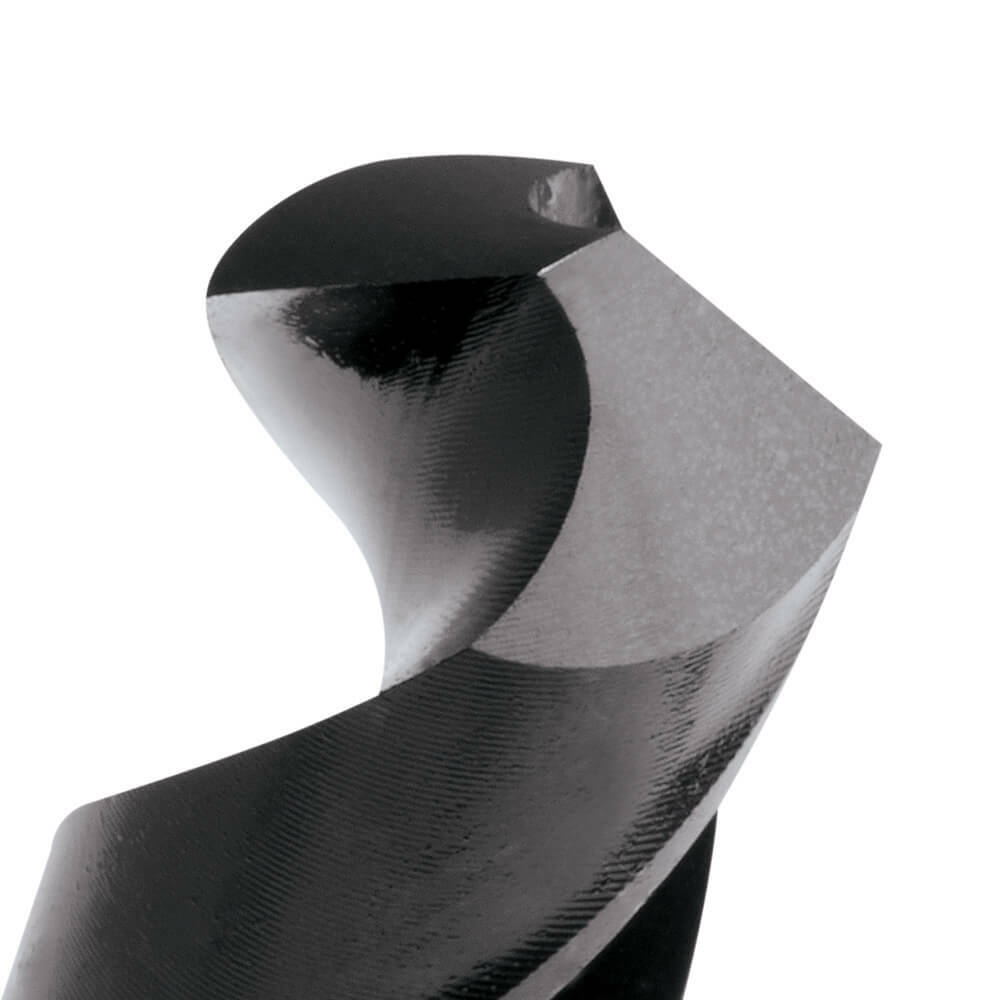

Point Angle: 118°
Point Form: Form A
Cutting Edges: ul
Standard: ANSI B94-11

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

AIMS SKU A0003861

Brand Sutton Tools

Model Number D1130170

Barcode Number 9311963169323

Thread Diameter (mm) 1.7

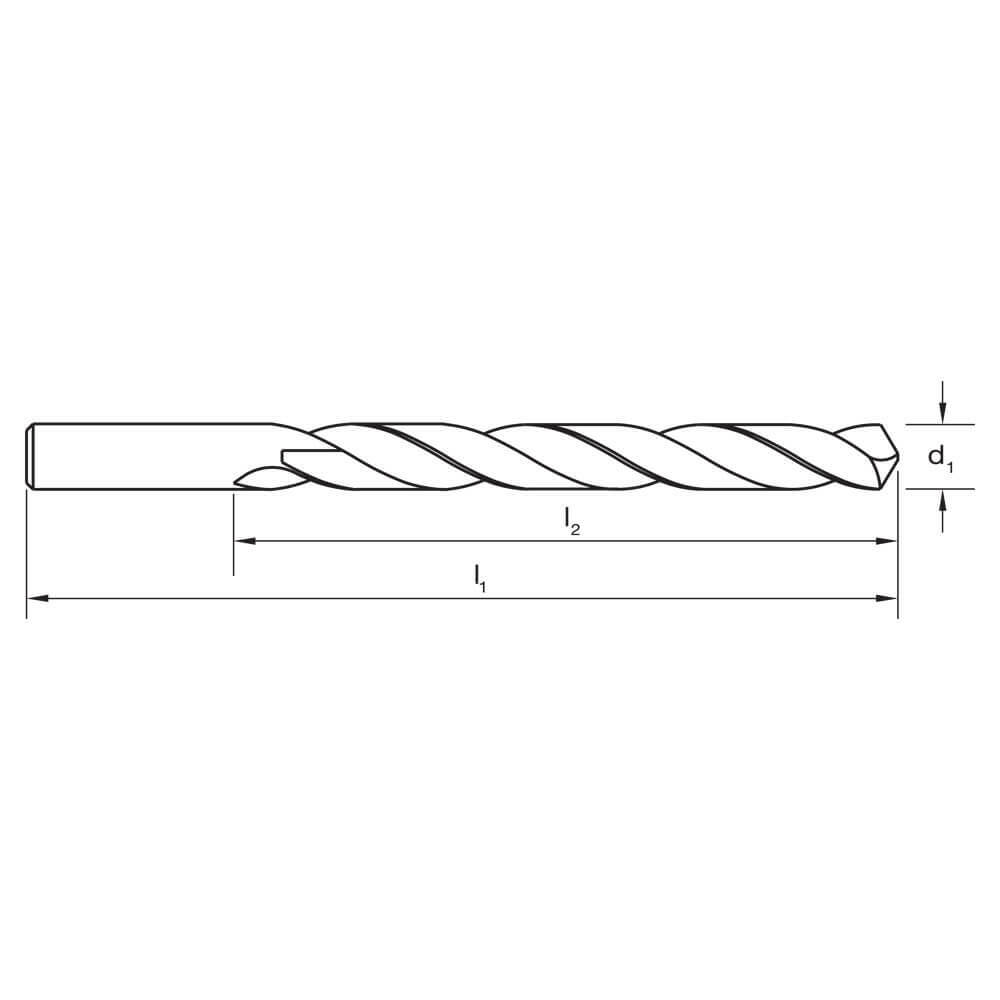

Overall Length (mm) 95

Flute Length (mm) 51

Group Code D113
Type Long Drill Bit
System of Measurement ANSI B94-11,Metric
Material High Speed Steel (HSS)
Finish Steam Oxide (Blue)
Helix Angle R30
Shank Form A
Point Angle 118
Point Form Form A
Maximum Cut Depth 8XD
Point Tolerance h8
