Descriptions

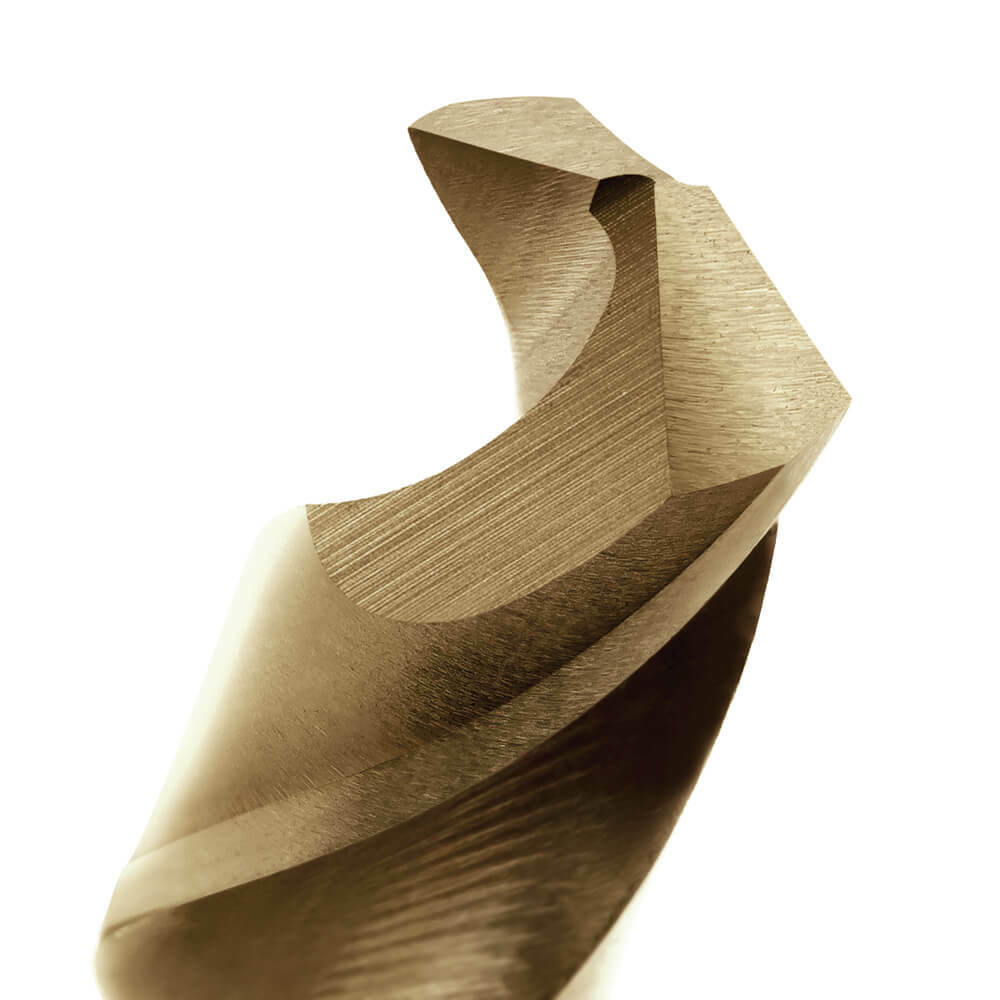

• Sutton Tools Heavy Duty Cobalt panel drills have been developed to drill holes for rivets in flat and curved panels and used in sheet metal fabrication
• The 5% cobalt formula improves abrasive & heat resistance, for tougher materials such as stainless steel
• The double ended design doubles the life of the drill bit

Features

• 135° self-centering point minimizes wandering when starting and ideal for thin materials
• Flute length designed for shallow hole drilling no deeper than 1.25mm x diameter
• Double ended design increases drill life. Ensure that the chuck jaws are fully tightened
• Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
• Colour Tempered surface finish enables identification of cobalt tool material

Specifications

• Designation: NH
• Material: High Speed Steel-Cobalt
• Finish: Colour Temp
• Maximum Cut Depth: 3XD
• X: als
• Point Tolerance: h8
• Point Angle: 135°
• Point Form: Standard
• Cutting Edges: ul

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
• Optimal for Steel - High alloy, cast & tool – 200HB
