Description

Descriptions

  • Sutton Tools Blue Bullet panel drills have been developed to drill holes for rivets in flat and curved panels and used in sheet metal fabrication
  • The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials

Features

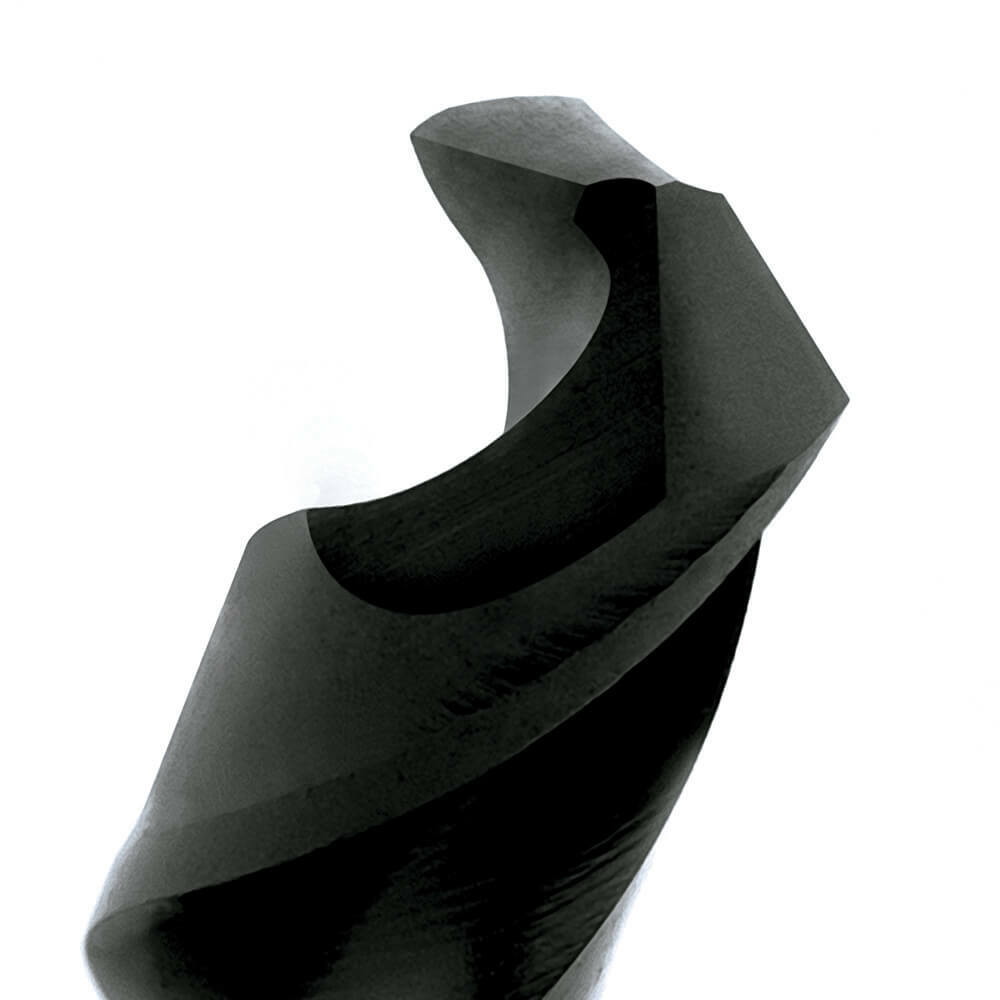

  • 135° self-centering point minimizes wandering when starting and ideal for thin materials
  • Flute length designed for shallow hole drilling no deeper than 1.25mm x diameter
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blue
  • Shank Form: A
  • X: als
  • Point Tolerance: h8
  • Point Angle: 135°
  • Point Form: Standard
  • Cutting Edges: ul

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Cast Iron, Grey (GG) – 180 HB
  • Optimal for Cast Iron, Nodular (GGG) – 160 HB

Specifications

  • AIMS SKU A0004252
  • Brand Sutton Tools
  • Model Number D1240318
  • Barcode Number 9311963105543

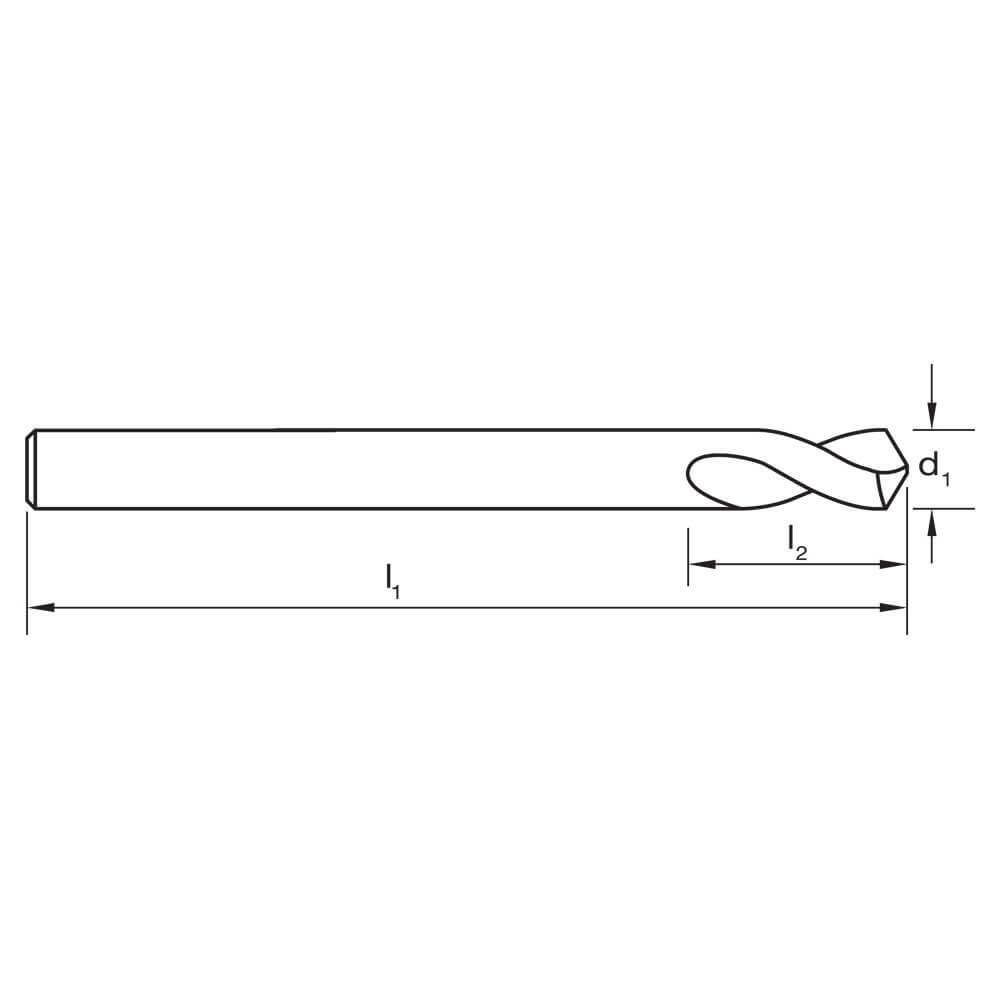

  • Thread Diameter (inch) 1/8
  • Overall Length (inch) 2 1/8
  • Shank (inch) 1/8
  • Flute Length (inch) 3/4
  • Group Code D124
  • Type Panel Drill Bit
  • System of Measurement Imperial
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Point Form Standard
  • Point Angle 135
  • Point Tolerance h8
  • Shank Form A
SKU: A0004252

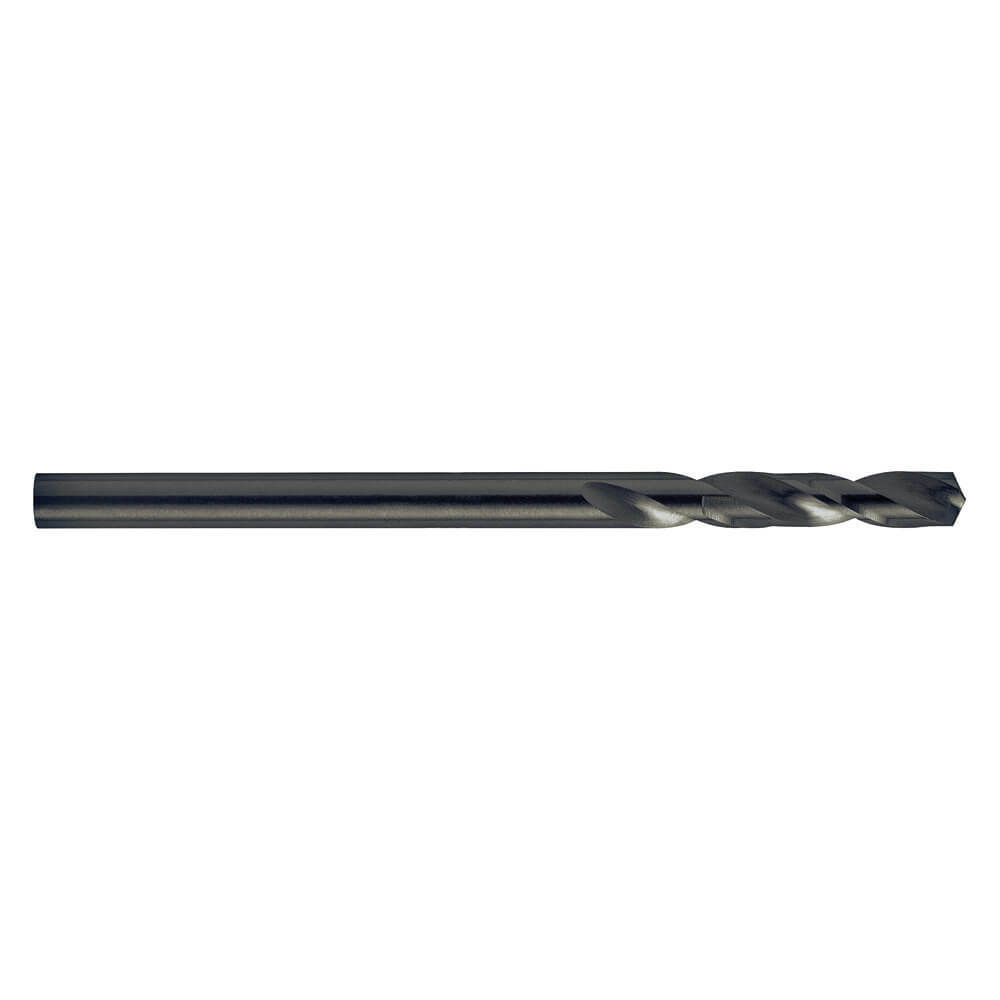

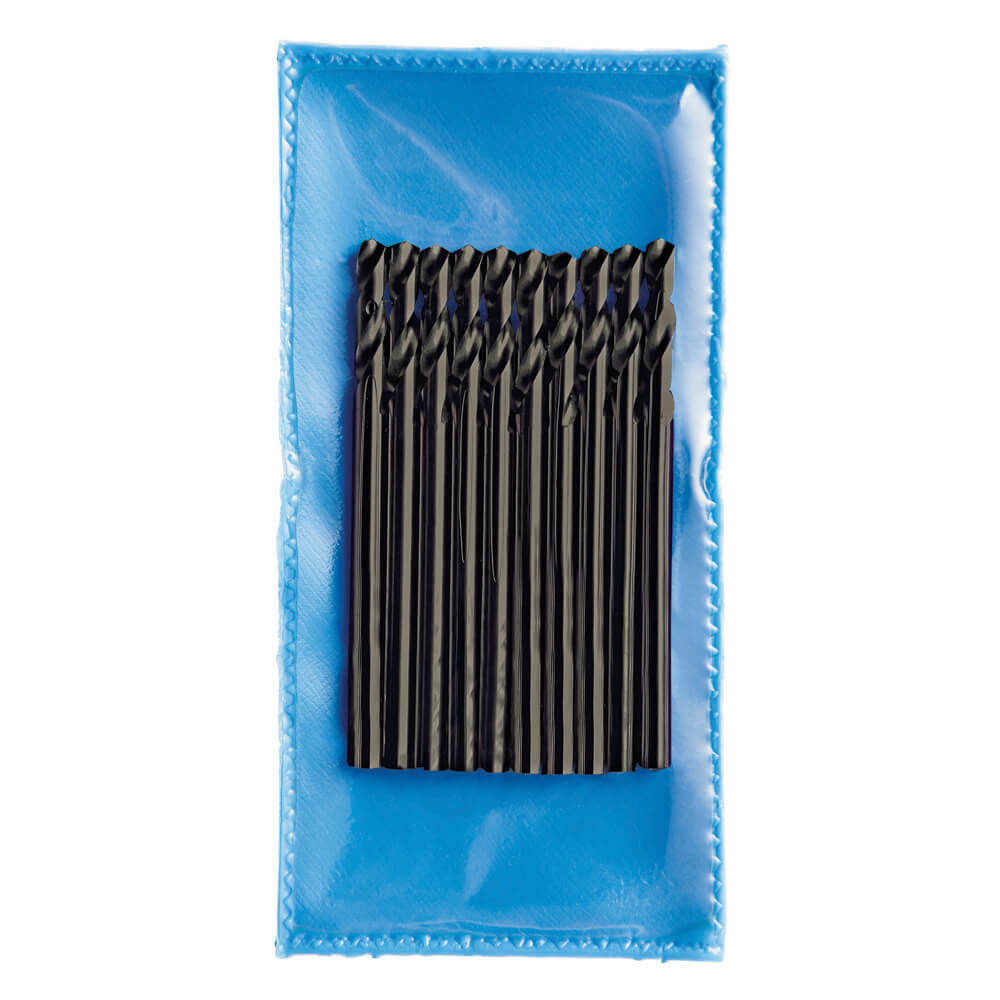

Sutton D1240318 1/8" Panel Drill Bit - Shortie - HSS - Pack of 10

Sutton Tools Panel Drill - Single Ended - Blue Bullet

$25.16
RRP $43.23
SAVE $18.07 (42%)

Choose a different size/variant

Calculate Shipping

Browse other products under

Panel Drill Bits & Sets

Browse other products by

Sutton Tools
