Description

*** JTEKT (Formerly Koyo Brand) ***

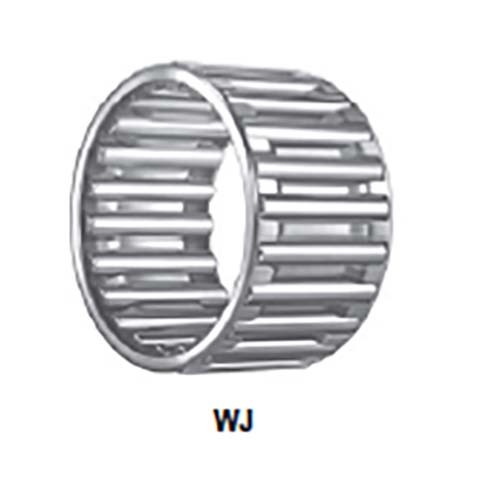

Shell Type Needle Roller Bearing Sigma Cage (WJ)

  • WJ, needle roller and sigma type cage assembly.

About Radial Needle Roller And Cage Assemblies

  • Needle roller and cage assemblies feature a complement of needles held in place by a cage with no inner or outer ring.
  • The minimal cross section provides maximum load-carrying capability within the smallest envelope.

Features and Benefits

  • Unitized design simplifies handling and installation while allowing for increased lube flow.
  • Split and segmented designs allow mounting at difficult positions on crankshafts and gear shafts.
  • Controlled contour rollers optimize contact stress distribution.
  • Special manufacturing processes help increase roller fatigue resistance and minimize axial drift effects in critical applications.
  • Optimized cage piloting geometry minimizes pressure velocity effects.
  • Steel or polymer cages are available to suit your application requirements.
  • Coatings are available to help avoid corrosion and improve wear resistance.

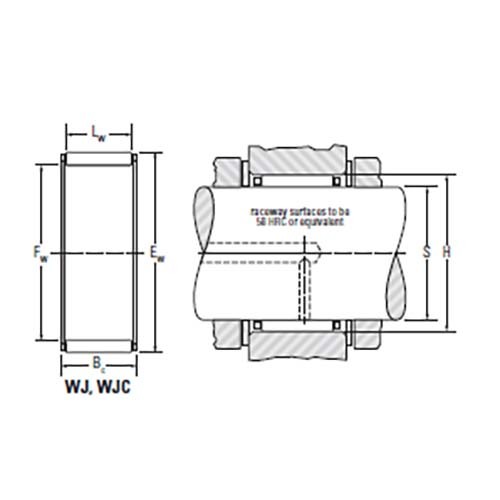

Specifications

  • AIMS SKU A0157119
  • Brand Koyo
  • Model Number WJ-162112/KOYO
  • Outside Diameter 3/4
  • Load Rating C0 (kn) 28.1
  • Speed Rating Oil Min-1 0
  • Width (in) 1 5/16
  • Inside Diameter (in) 0.75
  • H (iso G6) Mounting Dimension Max. (in) 0.9996
  • Load Rating C0 (lbf) 6320
  • Ew (in) 1
  • S (iso H5) Mounting Dimension Min. (mm) 25.4
  • Load Rating C (kn) 19.05
  • Speed Rating Grease Min-1 8340
  • Fw (mm) 1
  • Width 1 5/16 in
  • Bc (+0 -0.38 /+0 -0.015) mm 33.338
  • S (iso H5) Mounting Dimension Min. (in) 1
  • Load Rating C (lbf) 1 in
  • H (iso G6) Mounting Dimension Min. (mm) 33.363
  • S (iso H5) Mounting Dimension Max. (mm) 18000
  • Ew (mm) 25.4
  • Fw (in) 0.029
  • Bore Diameter 3/4 in
  • Outside Diameter (in) 1
  • H (iso G6) Mounting Dimension Min. (in) 1.3135
  • S (iso H5) Mounting Dimension Max. (in) 0
  • Bc (+0 -0.38 /+0 -0.015) (in) 1.3125
  • H (iso G6) Mounting Dimension Max. (mm) 25.39
  • Type Needle Roller Bearing
SKU: A0157119 On Sale

Koyo/JTEKT Shell Type Needle Roller Bearing Sigma Cage 1 x 1-5/16 x 3/4"

Shell Type Needle Roller Bearing Sigma Cage (WJ)

$23.41
$33.44
Sale Ends in
5/5 based on 1 review.
See all reviews

Choose a different size/variant

Calculate Shipping

Browse other products under

Needle Roller Bearings

Browse other products by

Koyo

Reviews

JOHN DEERE Bearings

"Thanks AIMS Industrial for you invaluable help in locating a very rare bearing size in imperial measurement for my antique John Deere 1010 crawler tractor.Times are awkward with this covid-19 crap and delivery expectations are delayed Aimsindustrial was very helpful in keep me updated. I have dealt with many engineering supply companies over my time and Aimsindustrial has far out weighted the competition. Thankyou.kind regards,Nick Kennedy, HJN Welding."

-
