Description

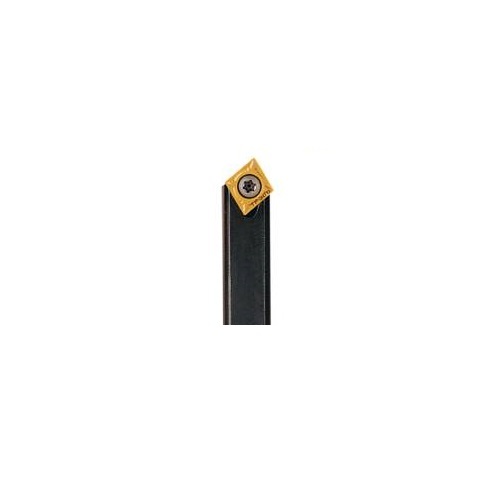

Seco Internal Turning Toolholder for Boring Solid Steel Screw Lock

Turning Internal Toolholder (Solid Steel - Screw Lock - E Type - C Insert Shape)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114513

Brand Seco

Model Number 75011131

Barcode Number 11131750000104

Net Weight (kg) 0.008

Designation S08A-SCECL06

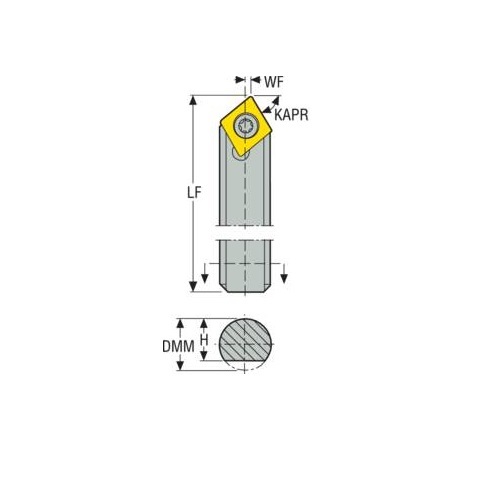

Cutting Edge Length (mm) 6

Functional Length (LF) 32mm

Tool Cutting Edge Angle (KAPR) 60.0 deg

Direction Of Cutting (hand) Left

Cutting Diameter Internal Minimum 3 (mm) 8

Inclination Angle (LAMS) 0.0 deg

Shank Diameter (DMM) 8mm

Functional Height (HF) mm 6.3

Connection Text Machine Side (CTMS) 8

Functional Width (WF) mm 1.5

Tool Type E Type

Height Of Tool Holder Shank (H) mm 6.3

Connection Text Workpiece Side (ctws) CC0602

Rake Angle Orthogonal (gamo) 0.0 deg
