Specifications
- AIMS SKU A0114569
- Brand Seco
- Model Number 02413858
- Barcode Number 13858024000100
- Net Weight (kg) 0.118
- Designation A12N-SCLCR09-R
- Inclination Angle (LAMS) -11.0 deg
- Tool Type L Type

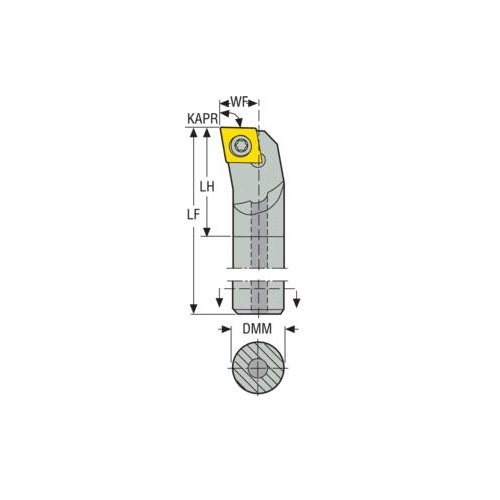

- Head Length (LH) mm 20
- Direction Of Cutting (hand) Right
- Functional Width (WF) mm 9
- Tool Cutting Edge Angle Code (KAPRC) L
- Functional Length (LF) 160
- Tool Cutting Edge Angle (KAPR) 95.0 deg
- Connection Text Machine Side (CTMS) 12
- Cutting Edge Length (mm) 9
- Cutting Diameter Internal Minimum (DCINN) 17
- Shank Diameter (DMM) 12
- Connection Text Workpiece Side (ctws) CC09T3
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Tool Holder Type Steel
- Version (internal/external/both) Internal
- Insert Clamping System (ICS) Screw Lock
- Shank Type Cylindrical
SKU: A0114569

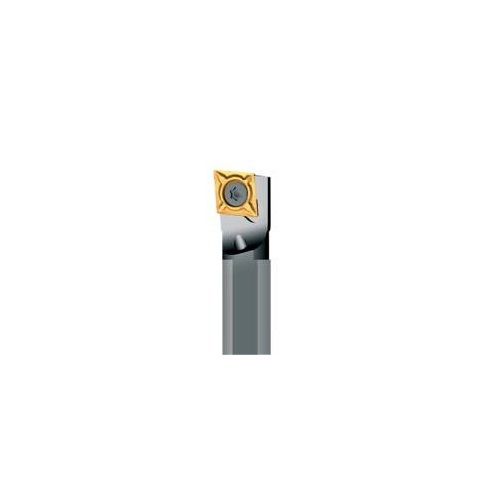

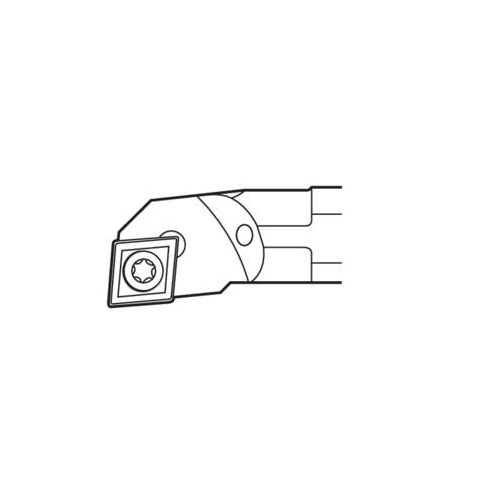

Seco Internal Turning Toolholder Steel Screw Lock 160 x 12 x 9mm Right 95° C Insert Shape - Round A12N-SCLCR09-R
Turning Internal Toolholder (Steel - Screw Lock - L Type
$190.08
SAVE $47.52 (20%)
