Specifications
- AIMS SKU A0114493
- Brand Seco
- Model Number 75036893
- Barcode Number 36893750000100
- Net Weight (kg) 0.321
- Designation A20Q-PWLNL06

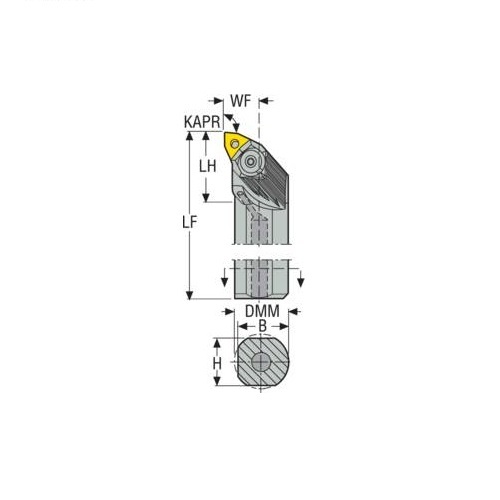

- Cutting Diameter Internal Minimum (DCINN) 25
- Shank Diameter (DMM) 20mm
- Tool Cutting Edge Angle (KAPR) 95.0 deg
- Direction Of Cutting (hand) Left
- Inclination Angle (LAMS) -14.0 deg
- Tool Type L Type
- Height Of Tool Holder Shank (H) mm 18
- Connection Text Workpiece Side (ctws) WN0604
- Connection Text Machine Side (CTMS) 20
- Functional Width (WF) mm 13
- Tool Cutting Edge Angle Code (KAPRC) L
- Functional Length (LF) 180mm
- Head Length (LH) mm 27
- Shank Width (b) mm 19
- Rake Angle Orthogonal (gamo) -5.0 deg
- Cutting Edge Length (mm) 6
- Type Turning Toolholder
- Tool Holder Type Steel
- Version (internal/external/both) Internal
- Insert Clamping System (ICS) Pin Lock
- Shank Type Cylindrical
SKU: A0114493

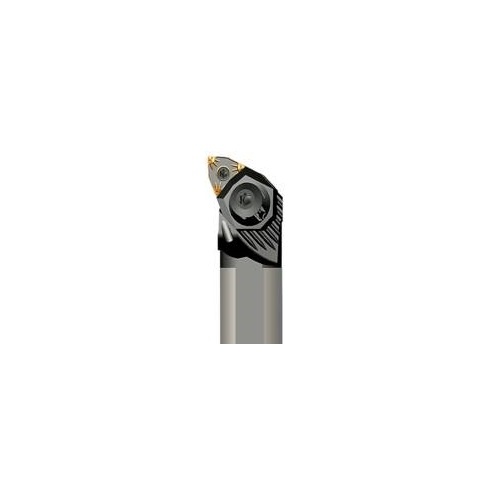

Seco Internal Turning Toolholder Steel Pin Lock 180 x 20 x 6mm Left 95° W Insert Shape A20Q-PWLNL06
Turning Internal Toolholder (Steel - Pin Lock - L Type)
$379.28
SAVE $94.82 (20%)
