Specifications

AIMS SKU A0114385
Brand Seco
Model Number 00041127
Barcode Number 41127000000100
Net Weight (kg) 2.03
Designation A20-MVPNL-3

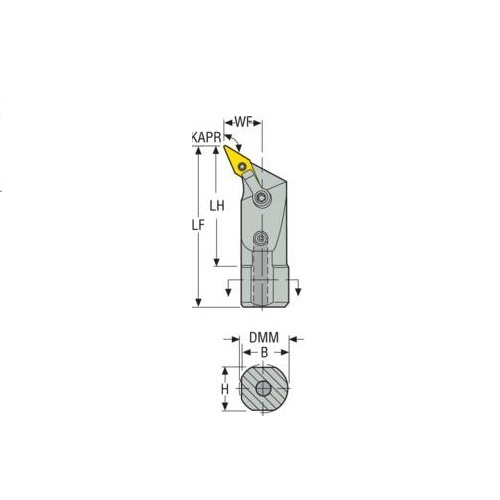

Functional Length (LF) 355.6mm
Height Of Tool Holder Shank (H) mm 29
Connection Text Workpiece Side (ctws) VN1604
Connection Text Machine Side (CTMS) 31.75
Cutting Depth Radial Max (CDRX) mm 4
Functional Width (WF) mm 22.2
Cutting Diameter Internal Minimum (DCINN) 44.45
Shank Diameter (DMM) 31.75mm
Head Length (LH) mm 76.2
Shank Width (b) mm 30.4
Rake Angle Axial (gamp) -12.0 deg
Ramping Angle Maximum (RPMX) 20.0 deg
Inclination Angle (LAMS) -12.0 deg
Tool Type P Type
Shank Length (LS) mm 279.4
Tool Cutting Edge Angle (KAPR) 117.5 deg
Direction Of Cutting (hand) Left
Rake Angle Orthogonal (gamo) -5.0 deg
Insert Size Inscribed Circle Diameter (mm) 3
Cutting Depth Max (CDX) mm 4
Tool Cutting Edge Angle Code (KAPRC) P

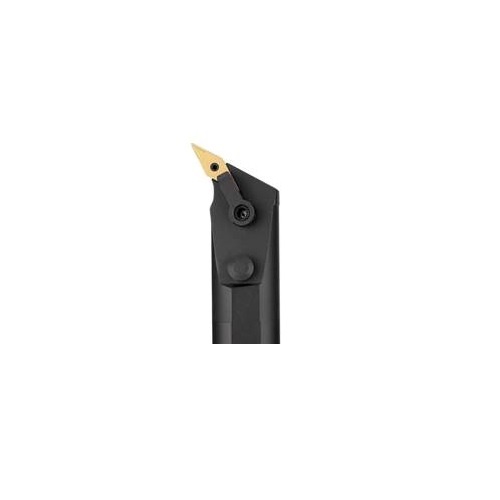

• Type Turning Toolholder
• Tool Holder Type Steel
• Version (internal/external/both) Internal

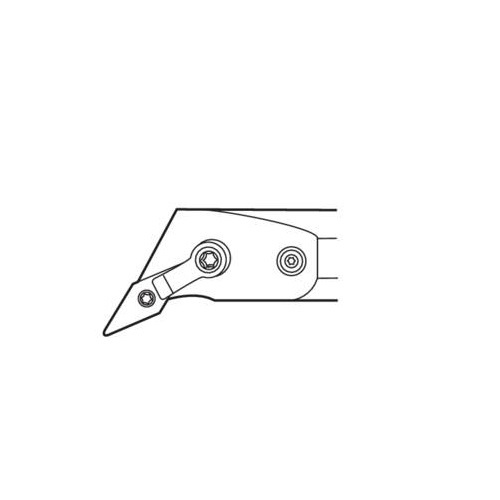

• Insert Clamping System (ICS) Multiple Lock
• Shank Type Cylindrical
