Specifications

AIMS SKU A0114376
Brand Seco
Model Number 00041098
Barcode Number 41098000000103
Net Weight (kg) 6

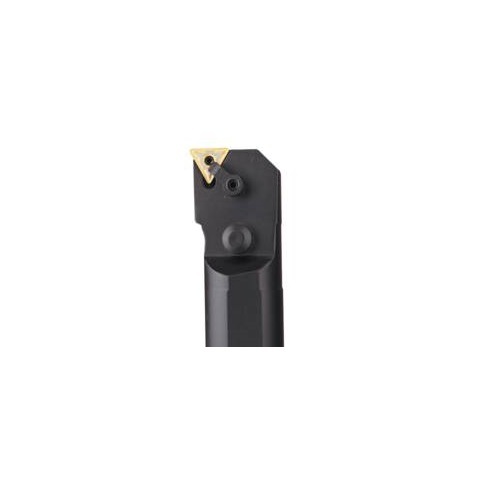

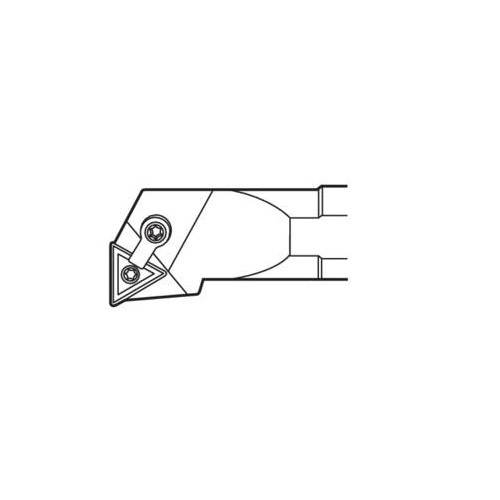

Designation A32-MTFNR-4
Tool Type F Type

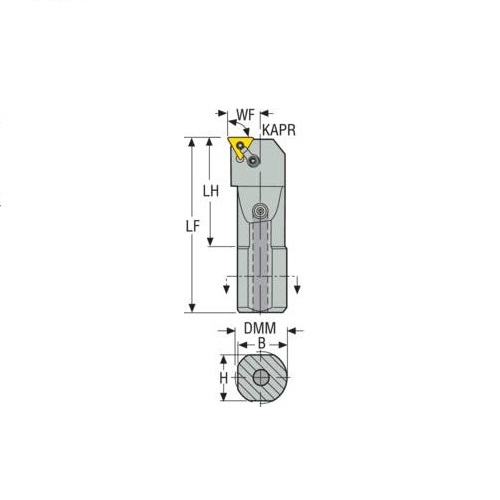

Height Of Tool Holder Shank (H) mm 47.8
Connection Text Workpiece Side (ctws) TN2204
Connection Text Machine Side (CTMS) 50.8
Cutting Depth Radial Max (CDRX) mm 5
Functional Width (WF) mm 32.8
Tool Cutting Edge Angle Code (KAPRC) F
Functional Length (LF) 406.4mm
Head Length (LH) mm 56
Shank Width (b) mm 49.3
Rake Angle Axial (gamp) -8.0 deg
Ramping Angle Maximum (RPMX) 0.0 deg
Cutting Edge Length (mm) 4
Cutting Diameter Internal Minimum (DCINN) 65
Shank Diameter (DMM) 50.8mm
Tool Cutting Edge Angle (KAPR) 90.0 deg
Direction Of Cutting (hand) Right
Rake Angle Orthogonal (gamo) -5.0 deg
Cutting Depth Max (CDX) mm 5
Inclination Angle (LAMS) -8.0 deg
• Type Turning Toolholder
• Tool Holder Type Steel
• Version (internal/external/both) Internal
• Insert Clamping System (ICS) Multiple Lock
• Shank Type Cylindrical
