Specifications
- AIMS SKU A0114735
- Brand Seco
- Model Number 00057651
- Barcode Number 57651000000101
- Net Weight (kg) 0.1
- Type Turning Toolholder
- Designation H0308-SCLDR-1.2
- Tool Holder Type Heavy Metal

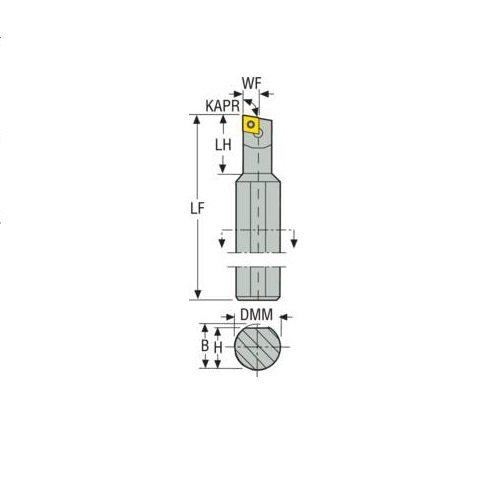

- Tool Cutting Edge Angle (KAPR) 95.0 deg
- Version (internal/external/both) Internal
- Rake Angle Orthogonal (gamo) 0.0 deg
- Insert Size Inscribed Circle Diameter (mm) 1.2
- Tool Cutting Edge Angle Code (KAPRC) L
- Shank Diameter (DMM) 12.7
- Height Of Tool Holder Shank (H) mm 12.1
- Connection Text Workpiece Side (ctws) CD04T0
- Direction Of Cutting (hand) Right
- Shank Type Cylindrical
- Functional Width (WF) mm 3
- Cutting Diameter Internal Minimum (DCINN) 5.38

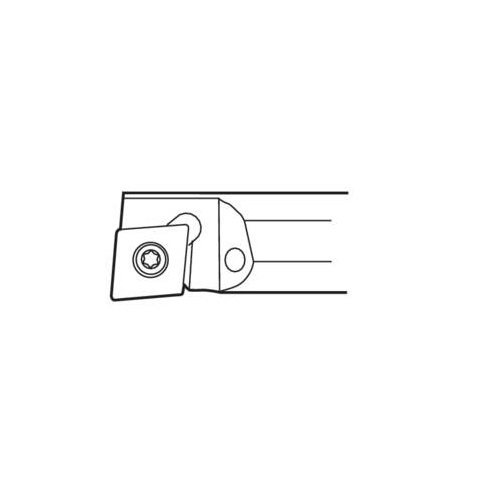

- Insert Clamping System (ICS) Screw Lock
- Head Length (LH) mm 28.5
- Shank Width (b) mm 12.7
- Connection Text Machine Side (CTMS) 4.76
- Body Diameter (BD) mm 4.8
- Inclination Angle (LAMS) -17.0 deg
- Functional Length (LF) 101.6
SKU: A0114735

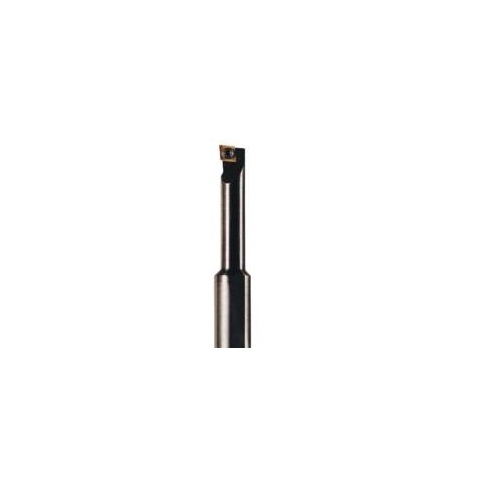

Seco Turning Internal Toolholder Heavy Metal Screw Lock 101.6 x 12.7 x 5.38mm Right 95° C Insert Shape H0308-SCLDR-1.2
Turning Internal Toolholder (Heavy Metal - Screw Lock -
$418.00
SAVE $104.50 (20%)
