Description

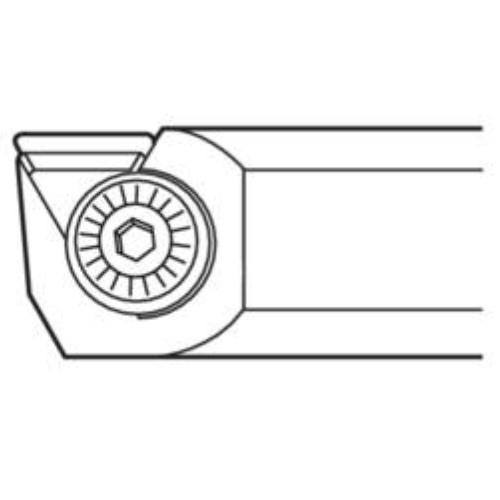

Seco Turning Internal Toolholder Carbide Clamp Lock 90 x 16mm Left 90° T Insert Shape CTAPL0016G11

Turning Internal Toolholder (Carbide - Screw Lock - A Type - T Insert Shape)

  • Carbide.
  • T insert shape.
  • Screw lock.
  • A tool type.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114687
  • Brand Seco
  • Model Number 75006610
  • Barcode Number 6610750000102
  • Net Weight (kg) 0.115
  • Type Turning Toolholder
  • Designation CTAPL0016G11
  • Tool Holder Type Carbide
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Version (internal/external/both) Internal
  • Rake Angle Orthogonal (gamo) 5.0 deg
  • Inclination Angle (LAMS) 3.0 deg
  • Shank Diameter (DMM) 16
  • Height Of Tool Holder Shank (H) mm 14.5
  • Connection Text Workpiece Side (ctws) TP1103
  • Direction Of Cutting (hand) Left
  • Shank Type Cylindrical
  • Tool Cutting Edge Angle Code (KAPRC) A
  • Insert Clamping System (ICS) Clamp Lock
  • Head Length (LH) mm 20
  • Shank Width (b) mm 15
  • Connection Text Machine Side (CTMS) 16
  • Functional Width (WF) mm 7.9
  • Functional Length (LF) 90
SKU: A0114687

Seco Turning Internal Toolholder Carbide Clamp Lock 90 x 16mm Left 90° T Insert Shape CTAPL0016G11

Turning Internal Toolholder (Carbide - Clamp Lock - A Ty

$151.36
RRP $189.20
SAVE $37.84 (20%)
