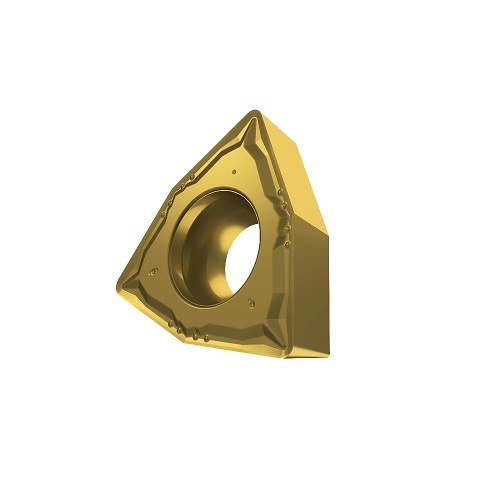

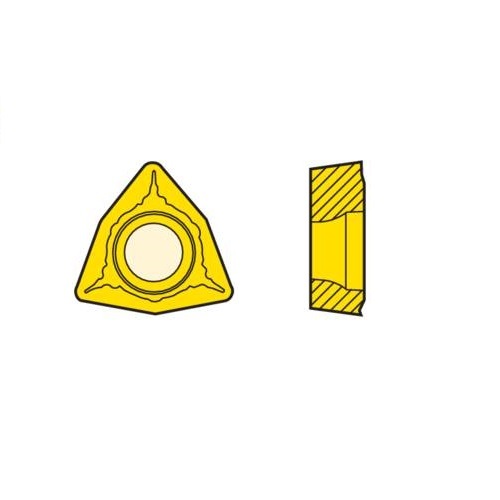

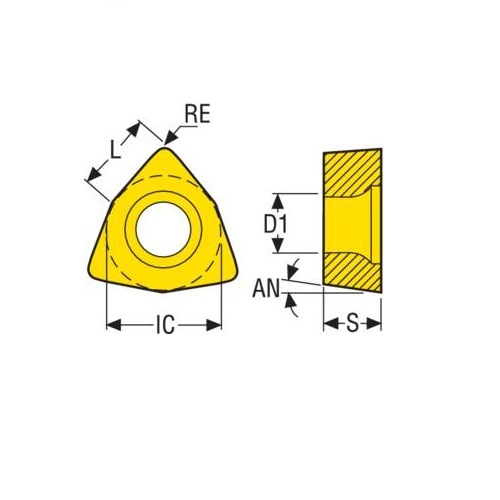

Turning Insert W Shape Code T Insert Type - W-F1 7° Grade CP500

• W shape code.
• T Insert Type.
• 7° insert side clearance angles.

CP500 Insert Grade

• PVD coated.
• Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts.
• (Ti, Al)N + TiN.

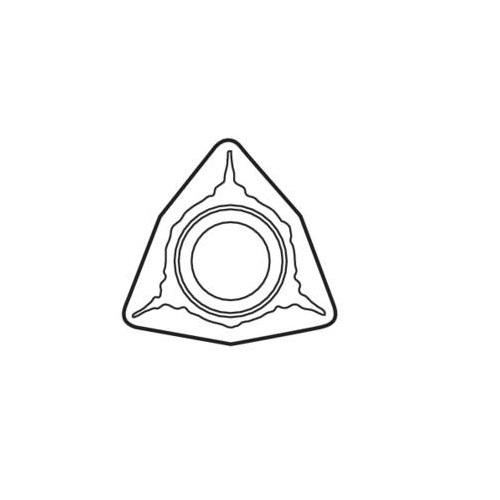

W-F1 Chipbreaker Programme

• A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
• Suitable for high feed rates at small depths of cut.
• Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
