Description

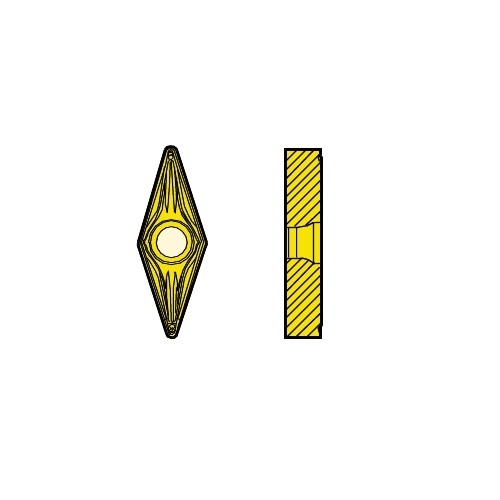

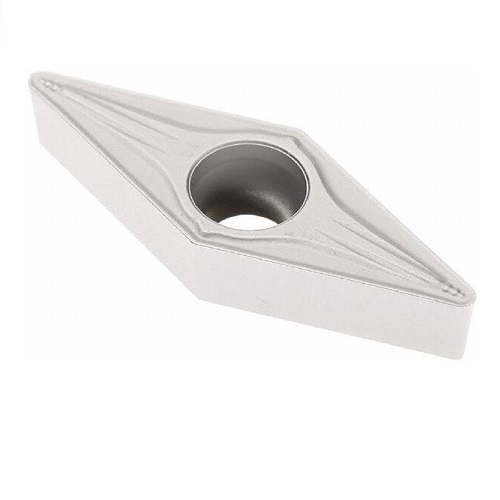

Turning Insert V Shape Code T Insert Type - M5 5° Grade TK1501

  • V shape code
  • T Insert Type.
  • 5° insert side clearance angles.

TK1501 Insert Grade

  • CVD Coated.
  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

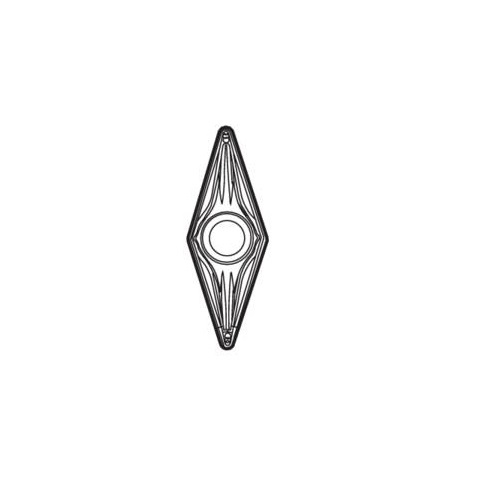

M5 Chipbreaker Programme

  • A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Safe action in interruptions and rough skin on parts also including boring.
  • Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116451
  • Brand Seco
  • Model Number 03062632
  • Barcode Number 62632030000509
  • Designation VBMT160408-M5,TK1501

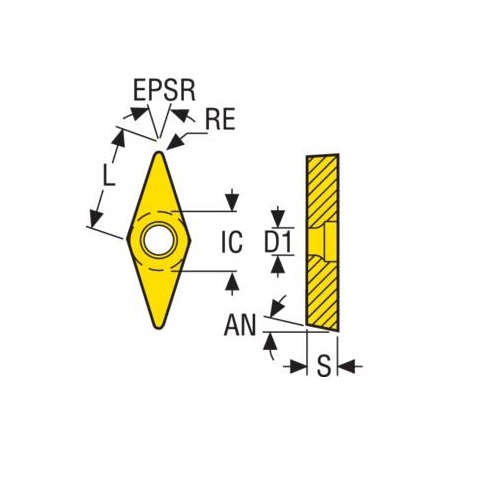

  • Theoretical Cutting Edge Length (L) mm 16.61
  • Clearance Angle Major (an) Deg 5.0 deg
  • Insert Shape Code (SC) V
  • Grade Grade TK1501
  • Chipbreaker Programme M5
  • Insert Included Angle (epsr) Deg 35.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Corner Radius (RE) mm 0.8
  • Tolerance ñ 0.13/ñ 0.05mm
  • Fixing Hole Diameter (d1) Mm 4.5
  • Fixing Hole Diameter D1 Mm 4.5
  • Insert Thickness (S) mm 4.76
  • Type Turning Insert
  • Insert Style VBMT
  • Insert Grade Grade TK1501
SKU: A0116451

Seco Turning Insert V Shape Code 4.76 x 0.8 x 9.53mm T Insert Type - M5 5° Grade TK1501 ± 0.13/± 0.05mm VBMT160408-M5 Pack of 5

Turning Insert VBMT Insert Style - M5 5° CVD Coated
