Description

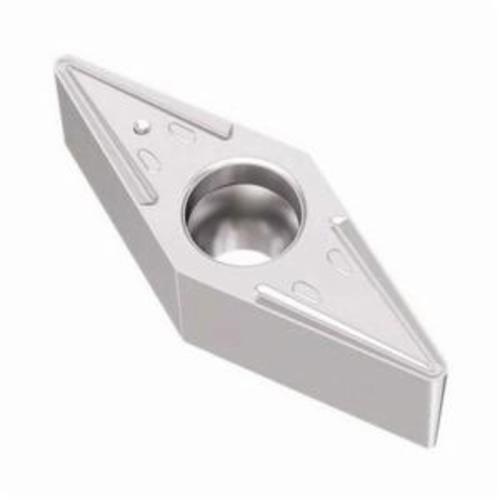

Turning Insert V Shape Code T Insert Type - M3 5° Grade TK0501

TK0501 Insert Grade

CVD Coated.
Duratomic® grade.
An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steel application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116438

Brand Seco

Model Number 03062600

Barcode Number 62600030000508

Designation VBMT160404-M3,TK0501

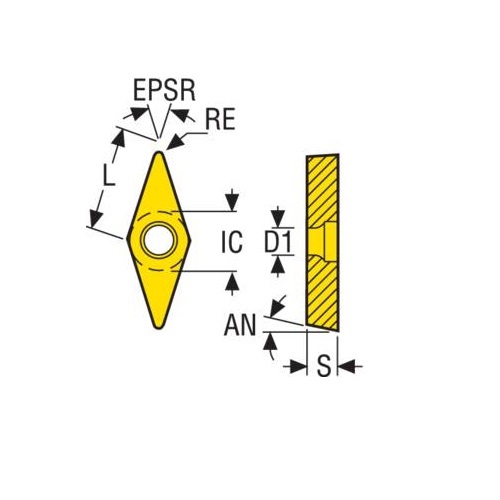

Theoretical Cutting Edge Length (L) mm 16.61

Clearance Angle Major (an) Deg 5.0 deg

Insert Shape Code (SC) V

Grade Grade TK0501

Chipbreaker Programme M3

Insert Included Angle (epsr) Deg 35.0 deg

Inscribed Circle Diameter (IC) mm 9.53

Corner Radius (RE) mm 0.4

Tolerance ñ 0.13/ñ 0.05mm

Fixing Hole Diameter (d1) Mm 4.5

Fixing Hole Diameter D1 Mm 4.5

Insert Thickness (S) mm 4.76
