Description

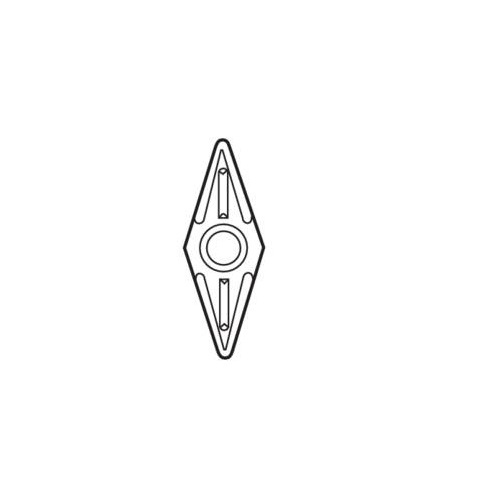

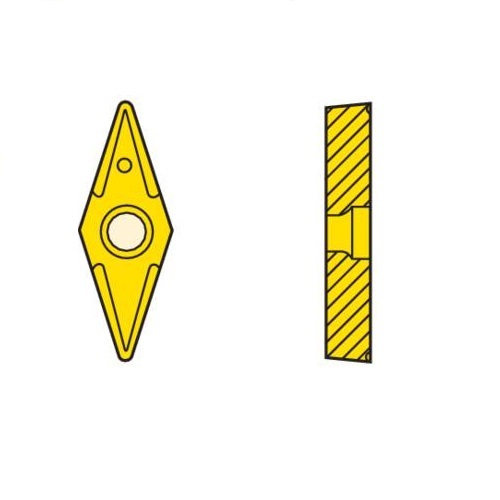

Turning Insert V Shape Code T Insert Type - F2 5° Grade HX

  • V shape code
  • T Insert Type.
  • 5° insert side clearance angles.

HX Insert Grade

  • Uncoated.
  • A universal uncoated grade intended for machining of cast iron and hardened steels useful also in non-ferrous materials.

F2 Chipbreaker Programme

  • A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
  • Suitable for medium cuts in steel and stainless steels application including boring.
  • Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116424
  • Brand Seco
  • Model Number 74016087
  • Barcode Number 16087740000508
  • Designation VBMT160404-F2,HX

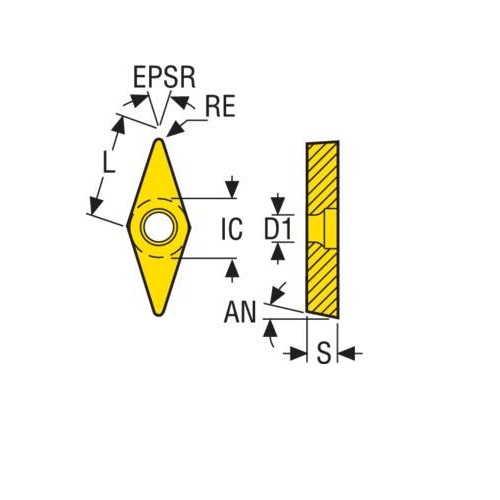

  • Theoretical Cutting Edge Length (L) mm 16.61
  • Clearance Angle Major (an) Deg 5.0 deg
  • Insert Shape Code (SC) V
  • Grade Grade HX
  • Chipbreaker Programme F2
  • Insert Included Angle (epsr) Deg 35.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Corner Radius (RE) mm 0.4
  • Tolerance ñ 0.13/ñ 0.05mm
  • Fixing Hole Diameter (d1) Mm 4.5
  • Fixing Hole Diameter D1 Mm 4.5
  • Insert Thickness (S) mm 4.76
  • Type Turning Insert
  • Insert Style VBMT
  • Insert Grade Grade HX
SKU: A0116424

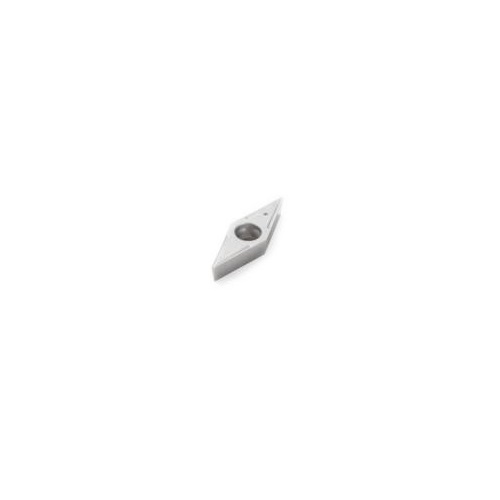

Seco Turning Insert V Shape Code 4.76 x 0.4 x 9.53mm T Insert Type - F2 5° Grade HX ± 0.13/± 0.05mm VBMT160404-F2 Pack of 5

Turning Insert VBMT Insert Style - F2 5° Grade HX

$109.15
