Description

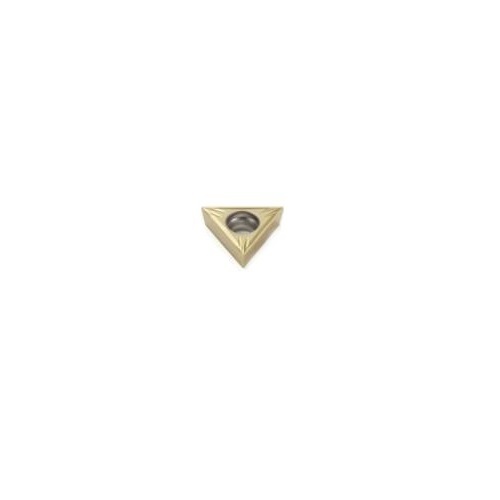

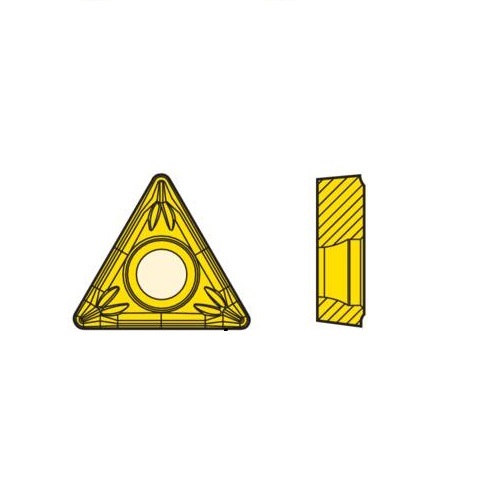

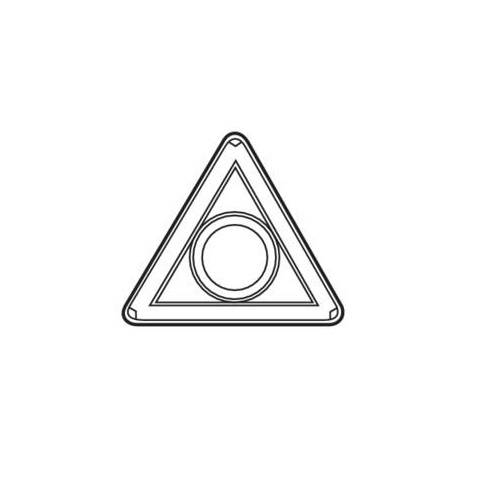

Turning Insert T Shape Code T Insert Type - MF2 7° Grade CP500

  • T shape code
  • T Insert Type.
  • 7° insert side clearance angles.

CP500 Insert Grade

  • PVD coated.
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
  • Especially suitable in intermittent cuts.
  • (Ti, Al)N + TiN

MF2 Chipbreaker Programme

  • A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
  • Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
  • Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116345
  • Brand Seco
  • Model Number 02755044
  • Barcode Number 55044027001008
  • Designation TCMT110208-MF2,CP500

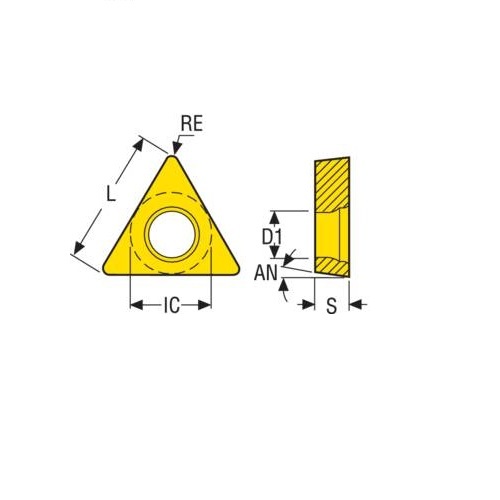

  • Fixing Hole Diameter (d1) Mm 2.9
  • Fixing Hole Diameter D1 Mm 2.9
  • Corner Radius (RE) mm 0.8
  • Insert Hand (IH) Neutral
  • Grade Grade CP500
  • Theoretical Cutting Edge Length (L) mm 11
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Shape Code (SC) T
  • Insert Thickness (S) mm 2.38
  • Cutting Edge Count (CEDC) 3
  • Chipbreaker Programme MF2
  • Insert Included Angle (epsr) Deg 60.0 deg
  • Inscribed Circle Diameter (IC) mm 6.35
  • Insert Seat Size Code (SSC) 11
  • Cutting Edge Effective Length (LE) mm 9
  • Grade Type Carbide PVD
  • Tolerance ñ 0.05/ñ 0.05mm
  • Type Turning Insert
  • Insert Style TCMT
  • Insert Grade Grade CP500
SKU: A0116345

Seco Turning Insert T Shape Code 2.38 x 0.8 x 6.35mm T Insert Type - MF2 7° Grade CP500 ± 0.05/± 0.05mm TCMT110208-MF2 Pack of 10

Turning Insert TCMT Insert Style - MF2 7° PVD Coated

$171.60
