Description

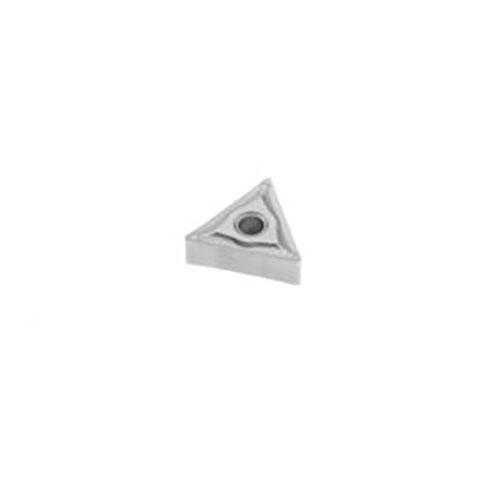

Seco Turning Insert T Shape Code 3.18 x 0.4 x 6.35mm G Insert Type - MF2 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMG110304-MF2,TP2501 10pcs

Turning Insert TNMG Insert Style - MF2 Grade TP2501 6.35mm Inscribed Circle Diameter (IC)

  • T shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TP2501 insert grade.
  • 6.35mm inscribed circle diameter (IC).

TP2501 Insert Grade

  • Duratomic® grade.
  • Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

  • First choice for finishing with negative inserts.
  • Suitable for chip control at depths of cut down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
  • Good capacity for medium rough machining.
  • Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118476
  • Brand Seco
  • Model Number 02960076
  • Barcode Number 60076029001009
  • Type Turning Insert
  • Designation TNMG110304-MF2 TP2501
  • Inscribed Circle Diameter (IC) mm 6.35
  • Insert Shape Code (SC) T
  • Insert Thickness (S) mm 3.18
  • Cutting Edge Count (CEDC) 6
  • Chipbreaker Programme MF2
  • Fixing Hole Diameter (d1) Mm 2.3
  • Insert Style TNMG
  • Insert Seat Size Code (SSC) 11
  • Cutting Edge Effective Length (LE) mm 10.6
  • Grade Type Carbide CVD
  • Theoretical Cutting Edge Length (L) mm 11
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Grade Grade TP2501
  • Corner Radius (RE) mm 0.4
  • Insert Hand (IH) Neutral
  • Grade TP2501
  • Insert Included Angle (epsr) Deg 60.0 deg
SKU: A0118476

Seco Turning Insert T Shape Code 3.18 x 0.4 x 6.35mm G Insert Type - MF2 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMG110304-MF2,TP2501 - Pack of 10

Turning Insert TNMG Insert Style - MF2 Grade TP2501 6.35

$122.98
