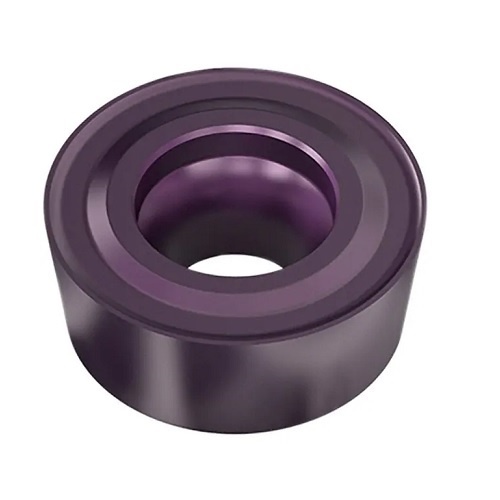

Seco Turning Insert R Shape Code 4.5 x 4.76 x 12mm T Insert Type - M3 7° Grade TH1000 ± 0.13/± 0.05mm RCMT1204M0-M3 Pack of 10

Turning Insert RCMT Insert Style - M3 7° Grade TH1000


Available
$192.09

Browse other products under:
Turning Inserts
Browse other products by:
SECO

Seco Turning Insert R Shape Code 4.5 x 4.76 x 12mm T Insert Type - M3 7° Grade TH1000 ± 0.13/± 0.05mm RCMT1204M0-M3 Pack of 10

Turning Insert R Shape Code T Insert Type - M3 7° Grade TH1000

  • R shape code
  • T Insert Type.
  • 7° insert side clearance angles.

TH1000 Insert Grade

  • PVD coated.
  • A very hard super micro-grain grade intended for partly hardened steel components as well as generally workpiece materials such as superalloys and due to remarkable edge toughness it also provides high performance in interrupted cuts and hard-surface removal.
  • Ti-Al-Si-N nanolaminate coating.

M3 Chipbreaker Programme

  • A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
  • Suitable for medium cuts in steel and stainless steel application including boring.
  • Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.x

AIMS SKU

A0116558

Brand

Seco

Model #

2998593

Barcode #

98593029001004

Product Type

Turning Insert

Designation

RCMT1204M0-M3

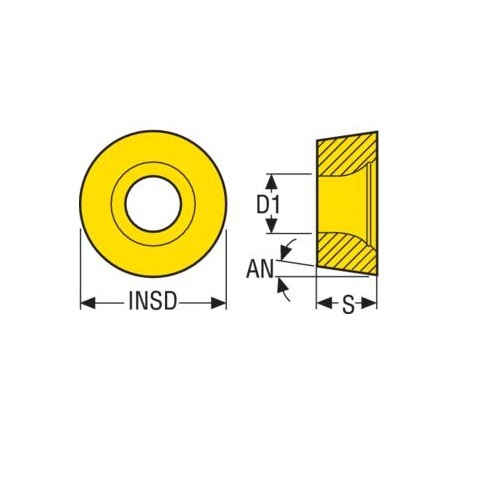

Fixing Hole Diameter (d1) Mm

4.5

Fixing Hole Diameter D1 Mm

4.5

Insert Shape Code (SC)

R

Insert Hand (IH)

Neutral

Grade

Grade TH1000

Chipbreaker Programme

M3

Clearance Angle Major (an) Deg

7.0 deg

Insert Style

RCMT

Insert Seat Size Code (SSC)

12

Cutting Edge Count (CEDC)

4

Qty in Pack

10

Tolerance

ñ 0.13/ñ 0.05mm

Insert Diameter (insd) Mm

12

Insert Grade

Grade TH1000

Insert Thickness (S) mm

4.76

Grade Type

Carbide PVD
