Description

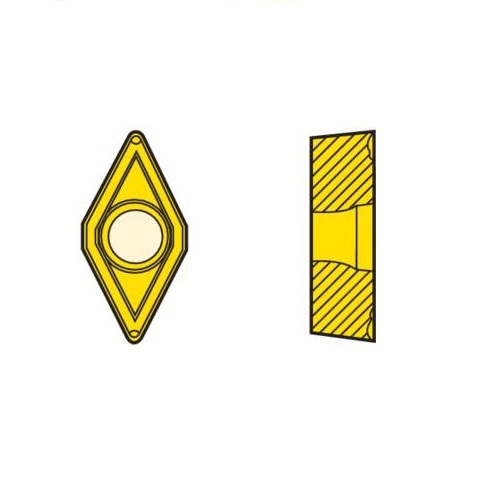

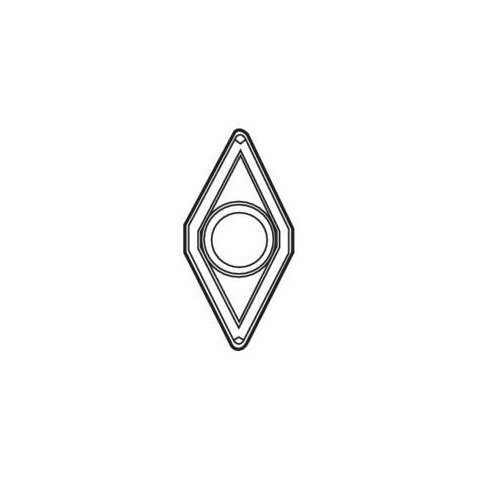

Turning Insert D Shape Code T Insert Type - F2 7° Grade CP200

CP200 Insert Grade

PVD Coated.
Hard micrograin grade principally intended for finishing in superalloys and titanium.
Also works well in stainless steels.
(Ti, Al) N + TiN.

F2 Chipbreaker Programme

A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steels application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116054

Brand Seco

Model Number 00075007

Barcode Number 75007000001000

Designation DCMT11T304-F2,CP200

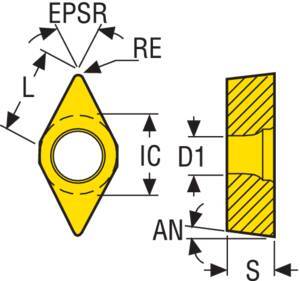

Theoretical Cutting Edge Length (L) mm 11.6

Clearance Angle Major (an) Deg 7.0 deg

Insert Shape Code (SC) D

Grade Grade CP200

Chipbreaker Programme F2

Insert Included Angle (epsr) Deg 55.0 deg

Inscribed Circle Diameter (IC) mm 9.53

Corner Radius (RE) mm 0.4

Tolerance ñ 0.13/ñ 0.05mm

Fixing Hole Diameter (d1) Mm 4.5

Fixing Hole Diameter D1 Mm 4.5

Insert Thickness (S) mm 3.97
