Turning Insert D Shape Code T Insert Type - F1 7° Grade TK0501

  • D shape code.
  • T Insert Type.
  • 7° insert side clearance angles.

TK0501 Insert Grade

  • CVD Coated.
  • Duratomic® grade. An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

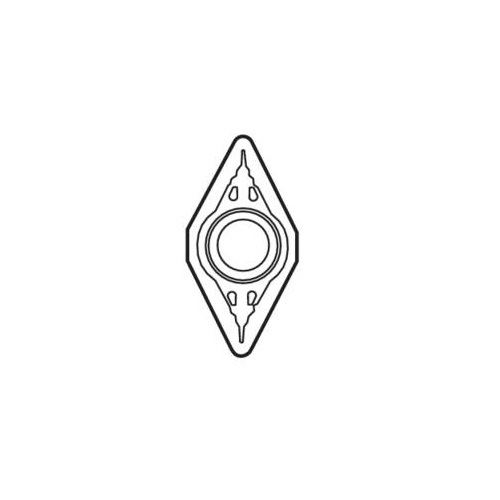

F1 Chipbreaker Programme

  • Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
  • Suitable for high feed rates at fine depths of cut in precision forgings and castings.
  • Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
  • Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116014
  • Brand Seco
  • Model Number 03062547
  • Barcode Number 62547030001008

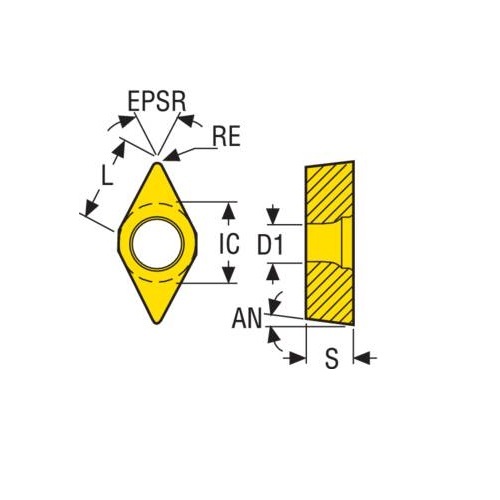

  • Designation DCMT11T304-F1,TK0501
  • Theoretical Cutting Edge Length (L) mm 11.6
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Shape Code (SC) D
  • Grade Grade TK0501
  • Chipbreaker Programme F1
  • Insert Included Angle (epsr) Deg 55.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Corner Radius (RE) mm 0.4
  • Tolerance ñ 0.13/ñ 0.05mm
  • Fixing Hole Diameter (d1) Mm 4.5
  • Fixing Hole Diameter D1 Mm 4.5
  • Insert Thickness (S) mm 3.97
  • Type Turning Insert
  • Insert Style DCMT
  • Insert Grade Grade TK0501
SKU: A0116014

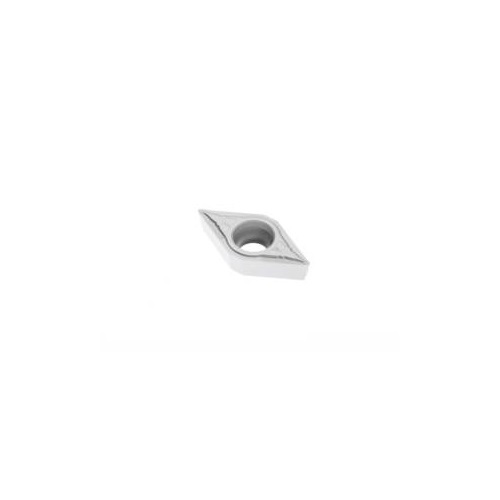

Seco Turning Insert D Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - F1 7° Grade TK0501 ± 0.13/± 0.05mm DCMT11T304-F1 Pack of 10

Turning Insert DCMT Insert Style - F1 7° Grade TK0501 9.

$209.74
