Specifications
- AIMS SKU A0115991
- Brand Seco
- Model Number 03096358
- Barcode Number 96358030001007
- Designation DCMT11T302-F1,TP3501

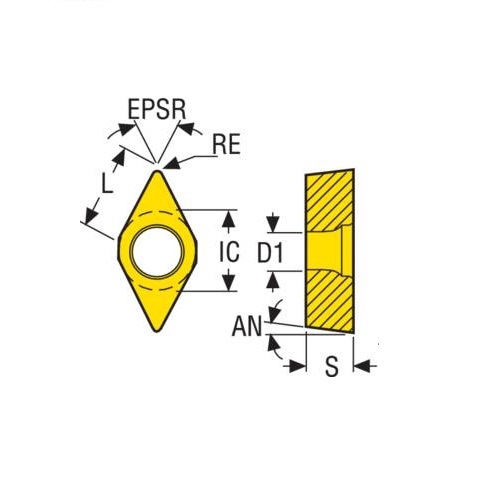

- Theoretical Cutting Edge Length (L) mm 11.6
- Clearance Angle Major (an) Deg 7.0 deg
- Insert Shape Code (SC) D
- Grade Grade TP3501
- Chipbreaker Programme F1
- Insert Included Angle (epsr) Deg 55.0 deg
- Inscribed Circle Diameter (IC) mm 9.53
- Corner Radius (RE) mm 0.2
- Tolerance ñ 0.13/ñ 0.05mm
- Fixing Hole Diameter (d1) Mm 4.5
- Fixing Hole Diameter D1 Mm 4.5
- Insert Thickness (S) mm 3.97

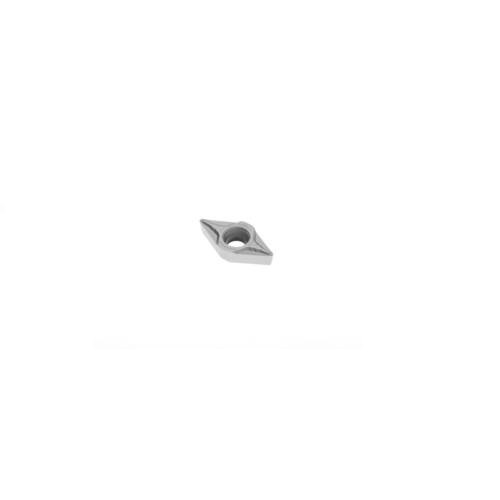

- Type Turning Insert
- Insert Style DCMT
- Insert Grade Grade TP3501
SKU: A0115991
Seco Turning Insert D Shape Code 3.97 x 0.2 x 9.53mm T Insert Type - F1 7° Grade TP3501 ± 0.13/± 0.05mm DCMT11T302-F1 Pack of 10
Turning Insert DCMT Insert Style - F1 7° Grade TP3501 9.
$241.20
