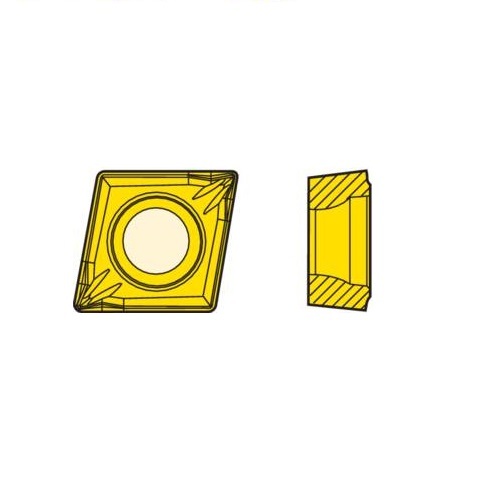

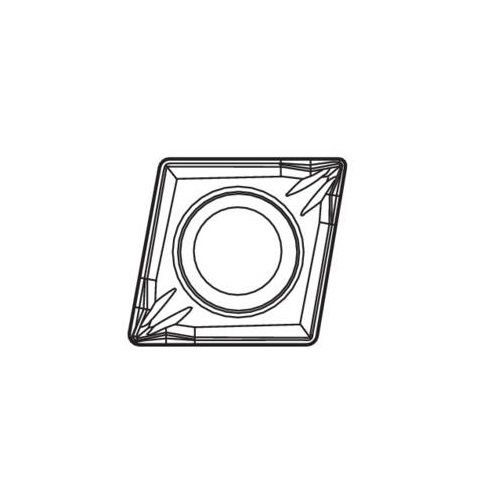

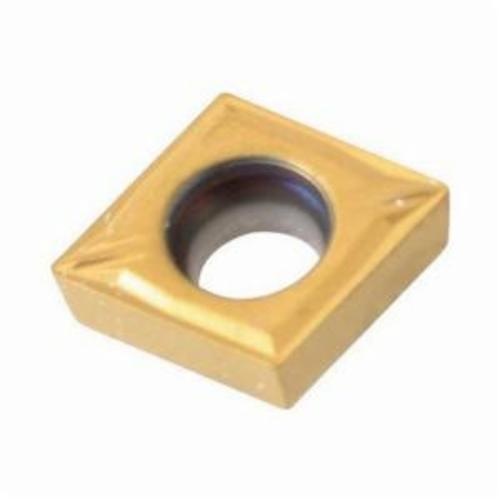

Turning Insert C Shape Code T Insert Type - W-MF2 7° Grade CP500

• C shape code.
• T Insert Type.
• 7° insert side clearance angles.

CP500 Insert Grade

• PVD Coated.
• Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys.
• Especially suitable in intermittent cuts.
• (Ti,Al)N + TiN.

W-MF2 Chipbreaker Programme

• First choice for finishing with both positive and negative inserts.
• Chipbreaker suitable for finishing machining of steel, stainless steel and cast iron at high feed rates giving good surface finish.
• Indicative machining range: f = 0,05-0,60 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
