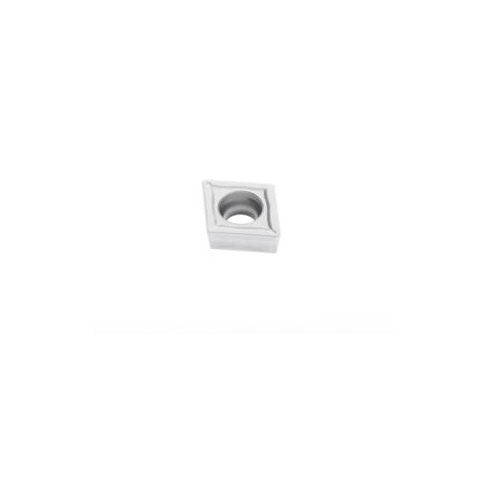

Turning Insert C Shape Code T Insert Type - M3 7° Grade TK1501 - ± 0.13/± 0.08mm Tolerance

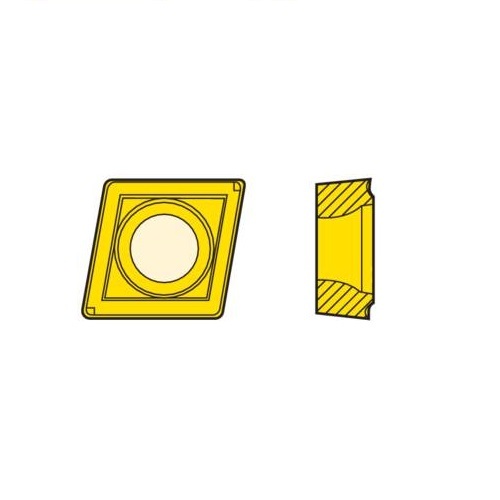

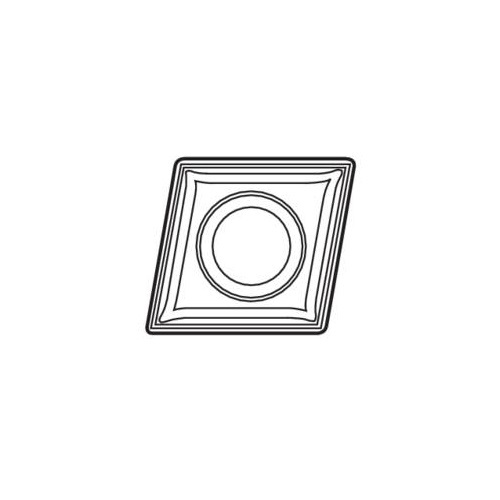

• C shape code
• T Insert Type.
• 7° insert side clearance angles.
• ± 0.13/± 0.08mm tolerance.

TK1501 Insert Grade

• CVD Coated.
• Duratomic® grade.
• A highly wear-resistant grade for cast irons in general as well as in steels.
• The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

M3 Chipbreaker Programme

• A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
• Suitable for medium cuts in steel and stainless steel application including boring.
• Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
