Description

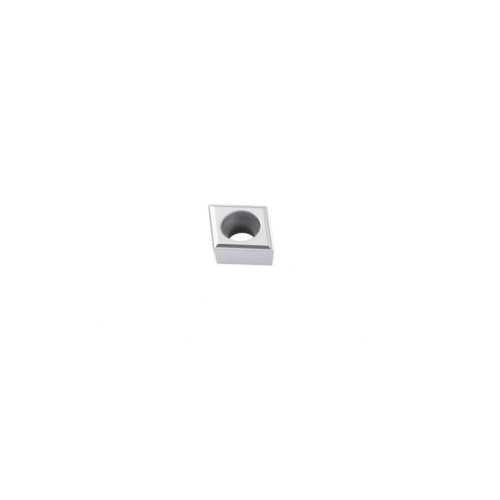

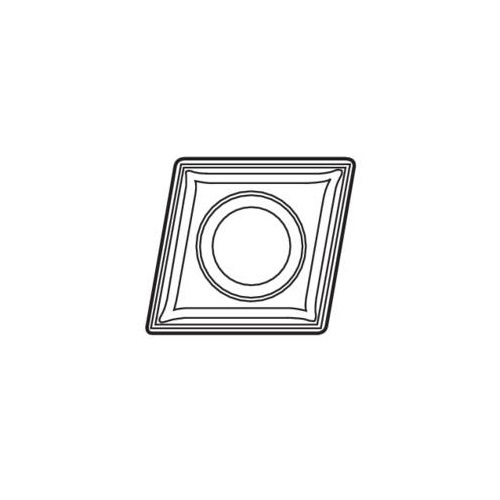

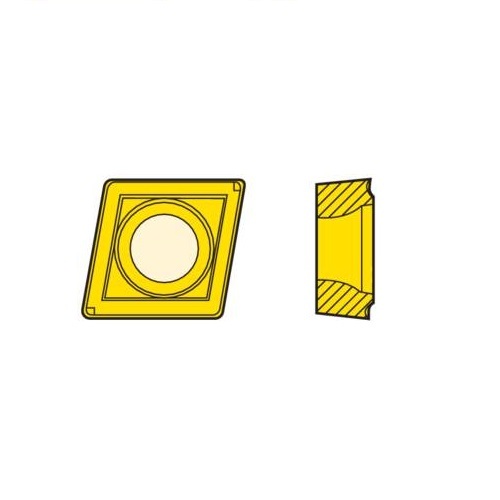

Turning Insert C Shape Code T Insert Type - FF1 7° Grade TP2501

TP2501 Insert Grade

CVD Coated.
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

FF1 Chipbreaker Programme

Chipbreaker for positive inserts. Used to achieve a very fine finish when turning slender steel and stainless steel components.
Indicative machining range: f = 0,05-0,30 mm/rev, ap = 0,2-2,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0115836

Brand Seco

Model Number 02960834

Barcode Number 60834029001005

Designation CCMT060202-FF1

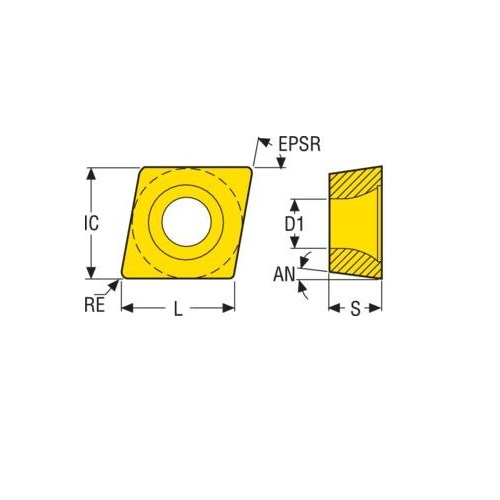

Theoretical Cutting Edge Length (L) mm 6.5

Clearance Angle Major (an) Deg 7.0 deg

Insert Shape Code (SC) C

Grade Grade TP2501

Chipbreaker Programme FF1

Insert Included Angle (epsr) Deg 80.0 deg

Inscribed Circle Diameter (IC) mm 6.35

Corner Radius (RE) mm 0.2

Tolerance ñ 0.05/ñ 0.05mm

Fixing Hole Diameter (d1) Mm 2.9

Fixing Hole Diameter D1 Mm 2.9

Insert Thickness (S) mm 2.38
