Description

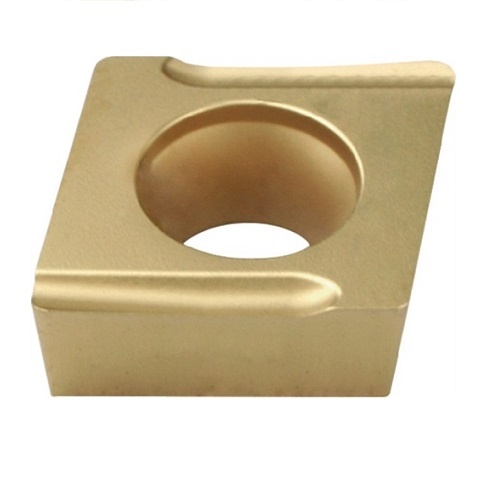

Turning Insert C Shape Code T Insert Type - UX 7° Grade CP500

CP500 Insert Grade

PVD Coated
Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
Especially suitable in intermittent cuts.
(Ti,Al)N + TiN

UX Chipbreaker Programme

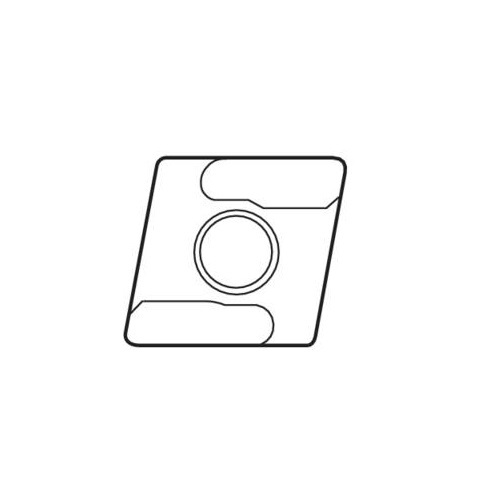

Chipbreaker for positive inserts. Smooth and easy chip flow on finishing and medium roughing in steel and stainless steel. Well suited for slim components.
Indicative machining range: f = 0,05–0,40 mm/rev, ap = 0,5-4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0115691

Brand Seco

Model Number 02497631

Barcode Number 97631024001009

Designation CCGT060204L-UX

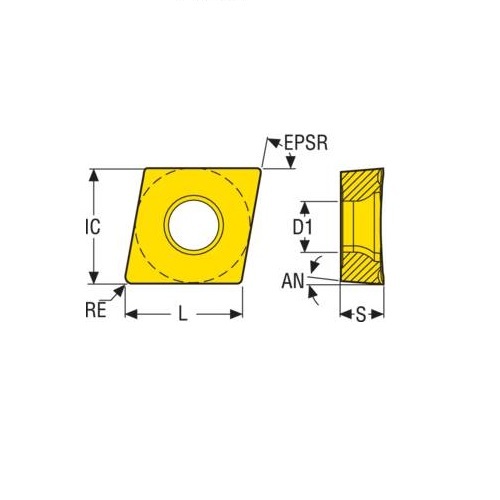

Theoretical Cutting Edge Length (L) mm 6.5

Clearance Angle Major (an) Deg 7.0 deg

Insert Shape Code (SC) C

Grade Grade CP500

Chipbreaker Programme UX

Insert Included Angle (epsr) Deg 80.0 deg

Inscribed Circle Diameter (IC) mm 6.35

Corner Radius (RE) mm 0.4

Tolerance ñ 0.05/ñ 0.025mm

Fixing Hole Diameter (d1) Mm 2.8

Fixing Hole Diameter D1 Mm 2.8

Insert Thickness (S) mm 2.38
