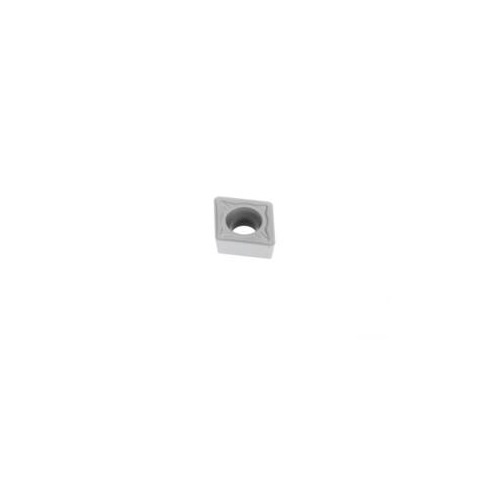

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm T Insert Type - M5 7° Grade TK1501 ± 0.13/± 0.08mm CCMT120412-M5 Pack of 10

Turning Insert C Shape Code T Insert Type - M5 7° Grade TK1501 - 1.2mm Corner Radius

  • C shape code
  • T Insert Type.
  • 7° insert side clearance angles.
  • 1.2mm corner radius (RE).

TK1501 Insert Grade

  • CVD Coated.
  • Duratomic® grade.
  • A highly wear-resistant grade for cast irons in general as well as in steels.
  • The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

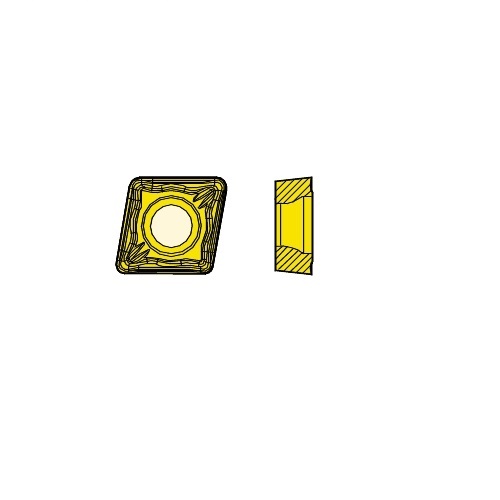

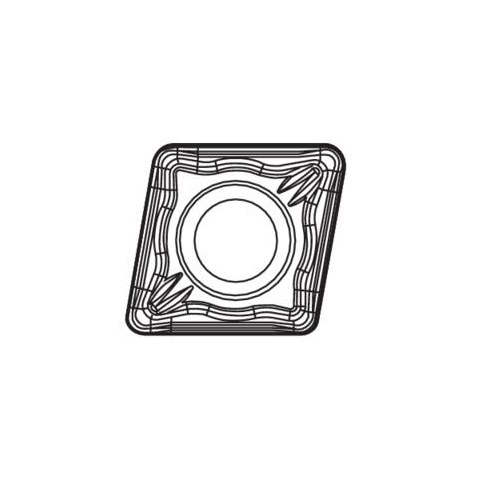

M5 Chipbreaker Programme

  • A highly reliable chip breaker for positive inserts. Intended for medium-rough and rough machining of steels, stainless steels, and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Safe action in interruptions and rough skin on parts also including boring.
  • Indicative machining range: f = 0,15–0,60 mm/rev, ap = 1–5 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116576
  • Brand Seco
  • Model Number 03062627
  • Barcode Number 62627030001007
  • Type Turning Insert
  • Designation CCMT120412-M5,CCMT120412-M5,TK1501

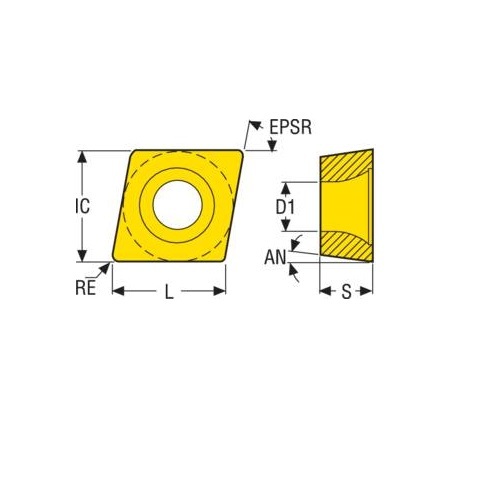

  • Theoretical Cutting Edge Length (L) mm 12.9
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Style CCMT
  • Corner Radius (RE) mm 1.2
  • Chipbreaker Programme M5
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Inscribed Circle Diameter (IC) mm 12.7
  • Insert Grade Grade TK1501
  • Insert Thickness (S) mm 4.76
  • Tolerance ñ 0.13/ñ 0.08mm
  • Fixing Hole Diameter (d1) Mm 5.6
  • Fixing Hole Diameter D1 Mm 5.6
  • Insert Shape Code (SC) C
  • Grade Grade TK1501
SKU: A0116576

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm T Insert Type - M5 7° Grade TK1501 ± 0.13/± 0.08mm CCMT120412-M5 Pack of 10

Turning Insert CCMT Insert Style - M5 7° CVD Coated

$251.68
