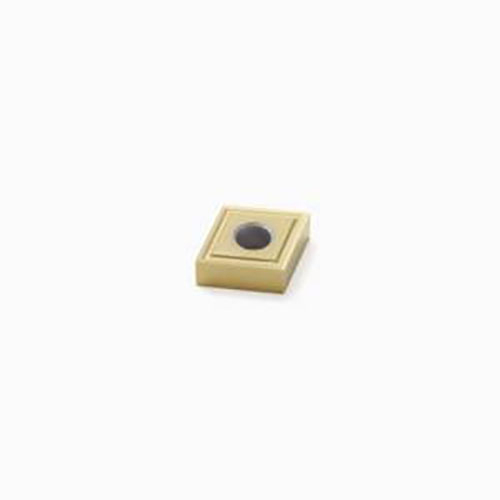

Seco Turning Insert C Shape Code 4.76 x 0.2 x 12.7mm G Insert Type - M1 Grade TS2500 ± 0.13/± 0.025mm Tolerance CNGG120402-M1,TS2500 10pcs

Turning Insert CNGG Insert Style - M1 Grade TS2500

  • C shape code.
  • G insert type, with hole and chip breaker on both faces.
  • TS2500 insert grade.

TS2500 Insert Grade

  • Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel.
  • (Ti, Al)N + TiN.

M1 Chipbreaker Programme

  • Chipbreaker intended for superalloys and titanium alloys.
  • It has a positive cutting rake angle which is slightly honed to increase the edge strength. Also available with a perfectly sharp edge (type ..GG insert).
  • The M1 is intended for light roughing and for semi-finishing.
  • Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1,5–5,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0118524
  • Brand Seco
  • Model Number 02615953
  • Barcode Number 15953026001006
  • Type Turning Insert
  • Designation CNGG120402-M1 TS2500
  • Chipbreaker Programme M1
  • Fixing Hole Diameter (d1) Mm 5.2
  • Insert Style CNGG
  • Corner Radius (RE) mm 0.2
  • Theoretical Cutting Edge Length (L) mm 12.9
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Grade Grade TS2500
  • Insert Thickness (S) mm 4.76
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Inscribed Circle Diameter (IC) mm 12.7
  • Insert Shape Code (SC) C
  • Grade TS2500
SKU: A0118524

Seco Turning Insert C Shape Code 4.76 x 0.2 x 12.7mm G Insert Type - M1 Grade TS2500 ± 0.13/± 0.025mm Tolerance CNGG120402-M1,TS2500 - Pack of 10

Turning Insert CNGG Insert Style - M1 Grade TS2500

$348.92
