Specifications
- AIMS SKU A0115589
- Brand Seco
- Model Number 02598525
- Barcode Number 98525025000101
- Net Weight (kg) 0.974
- Type Turning Toolholder
- Designation DDNNN3225P11-C

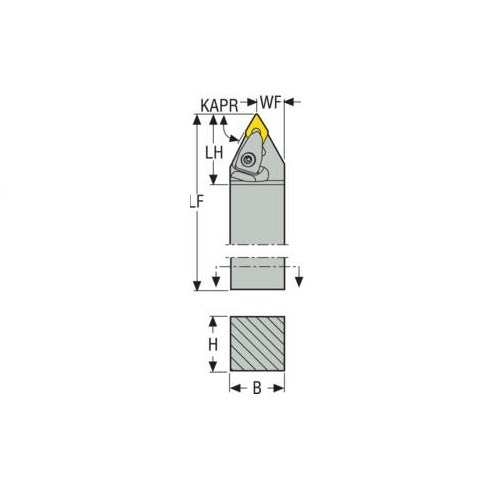

- Functional Length (LF) 170mm
- Tool Cutting Edge Angle (KAPR) 62.5 deg
- Version (internal/external/both) External
- Rake Angle Orthogonal (gamo) -9.0 deg
- Functional Width (WF) mm 32
- Tool Cutting Edge Angle Code (KAPRC) N
- Insert Clamping System (ICS) Top Clamp
- Connection Text Workpiece Side (ctws) DN1104
- Direction Of Cutting (hand) Neutral
- Shank Type Square shank
- Insert Shape Code (SC) D
- Cutting Edge Length (mm) 11
- Tool Type N Type
- Height Of Tool Holder Shank (H) mm 32
- Shank Width (b) mm 25
- Connection Text Machine Side (CTMS) 3225
- Head Length (LH) 33mm
- Inclination Angle (LAMS) -5.0 deg
SKU: A0115589

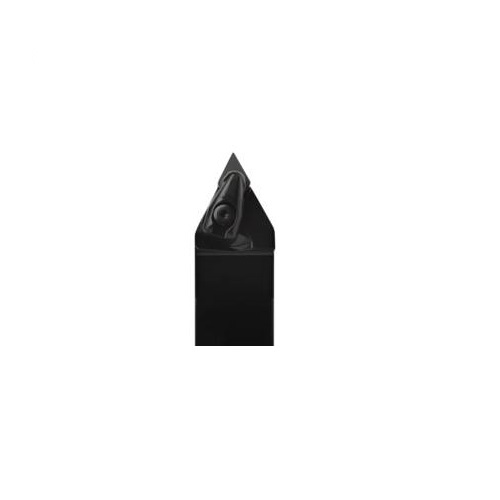

Seco Turning External Toolholder Top Clamp 170 x 32 x 11mm Neutral 62.5° D Insert Shape DDNNN3225P11-C
Top Clamp - N Type - D Insert Shape - C Surface
$254.32
SAVE $63.58 (20%)
