Specifications

AIMS SKU A0114875
Brand Seco
Model Number 02588080
Barcode Number 88080025000108
Net Weight (kg) 1.066
Designation DCLNL3225P12-M

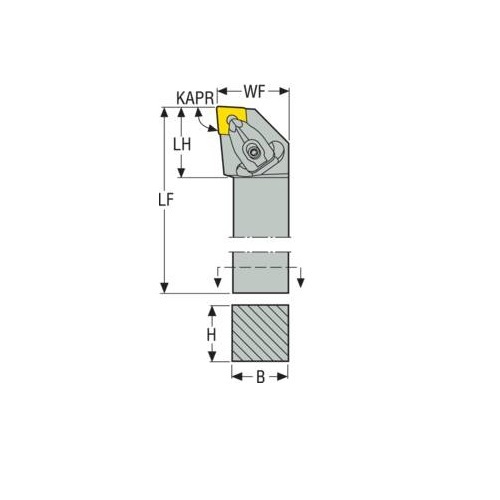

Functional Length (LF) 170mm
Insert Shape Code (SC) C
Head Length (LH) 32mm
Functional Width (WF) mm 32
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Tool Type L Type
Height Of Tool Holder Shank (H) mm 32
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 25
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 3225
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Top Clamp
