Description

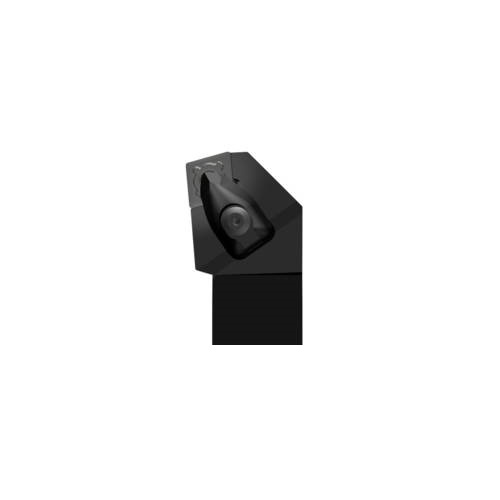

Seco Turning External Toolholder Top Clamp Left 75° C Insert Shape DCKNL2020K12-M

Turning External Toolholder (Top Clamp - K Type - C Insert Shape - M Surface)

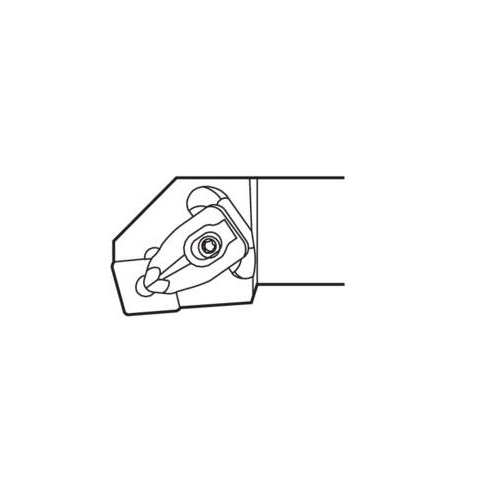

  • Top clamp using the center hole.
  • C insert shape.
  • K tool type, offset with a 15° end cutting edge angle.
  • M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114847
  • Brand Seco
  • Model Number 02588123
  • Barcode Number 88123025000102
  • Net Weight (kg) 1.42
  • Designation DCKNL3232P19-M

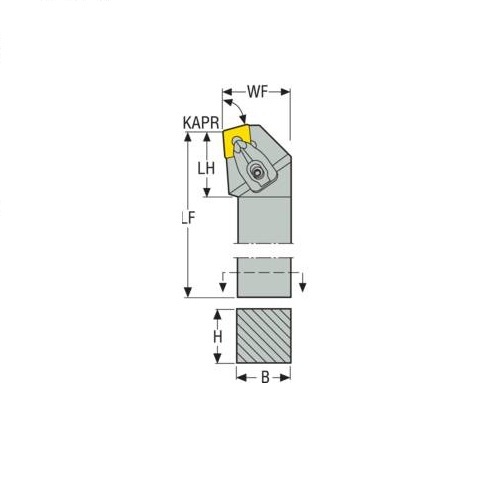

  • Functional Length (LF) 170mm
  • Insert Shape Code (SC) C
  • Head Length (LH) 36mm
  • Functional Width (WF) mm 40
  • Cutting Edge Length (mm) 19
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) K
  • Tool Type K Type
  • Height Of Tool Holder Shank (H) mm 32
  • Tool Cutting Edge Angle (KAPR) 75.0 deg
  • Connection Text Workpiece Side (ctws) CN1906
  • Shank Width (b) mm 32
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 3232
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0114847

Seco Turning External Toolholder Top Clamp 170 x 36 x 19mm Left 75° C Insert Shape DCKNL3232P19-M

Top Clamp - K Type - C Insert Shape - M Surface

$232.84
RRP $279.40
SAVE $46.56 (17%)
