Specifications

AIMS SKU A0115590
Brand Seco
Model Number 02565549
Barcode Number 65549025000109
Net Weight (kg) 0.778
Designation DSSNR-16-4D

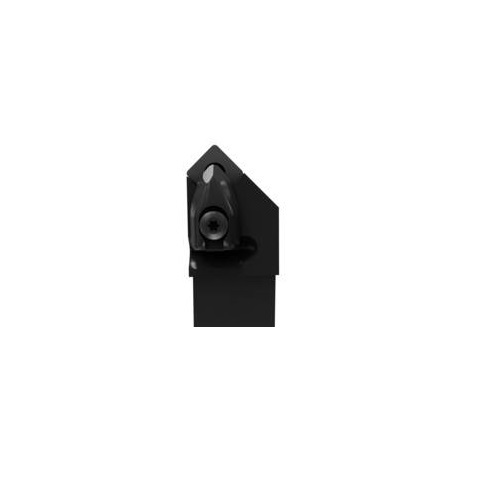

Type Turning Toolholder

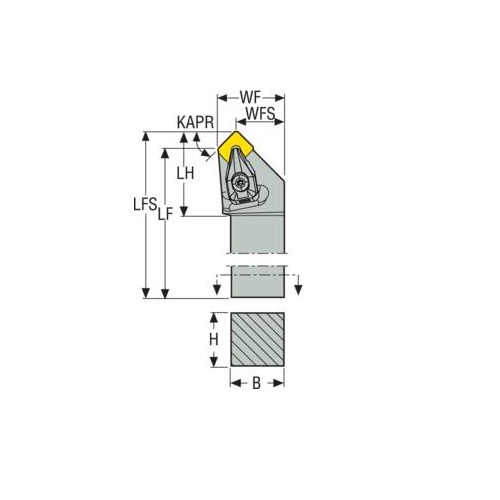

Functional Length (LF) 152.3mm
Shank Type Square shank
Insert Shape Code (SC) S
Head Length (LH) 40mm
Cutting Diameter Internal Minimum 3 (mm) 257
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 0.0 deg
Functional Width (WF) mm 19.1
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) S
Cutting Diameter Internal Minimum (DCINN) 275
Tool Type S Type
Rake Angle Radial (gamf) -6.0 deg
Insert Clamping System (ICS) Top Clamp
Insert Seat Size Code (SSC) 1204
Shank Length (LS) mm 112.4
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 45.0 deg
Connection Text Workpiece Side (ctws) SN1204
Shank Width (b) mm 25.4
Version (internal/external/both) External
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
