Description

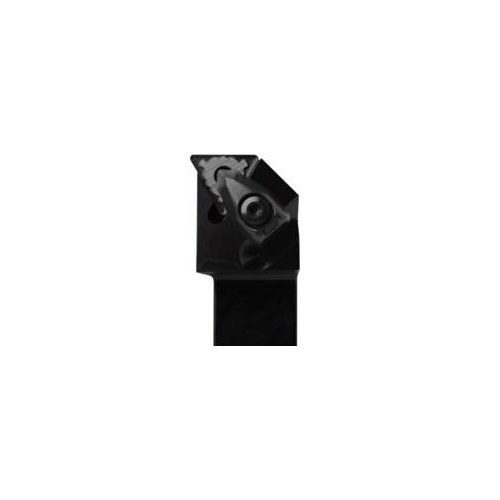

Seco Turning External Toolholder Top Clamp Right 90° T Insert Shape DTFNR2020K16-M

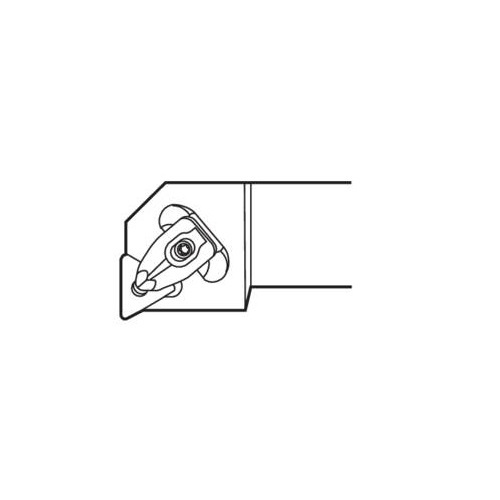

Turning External Toolholder (Top Clamp - F Type - T Insert Shape - M Surface)

  • Top clamp using the center hole.
  • T insert shape.
  • F tool type, offset shank with 0° end cutting edge angle.
  • M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115012
  • Brand Seco
  • Model Number 02588216
  • Barcode Number 88216025000101
  • Net Weight (kg) 0.752
  • Designation DTFNR2525M22-M

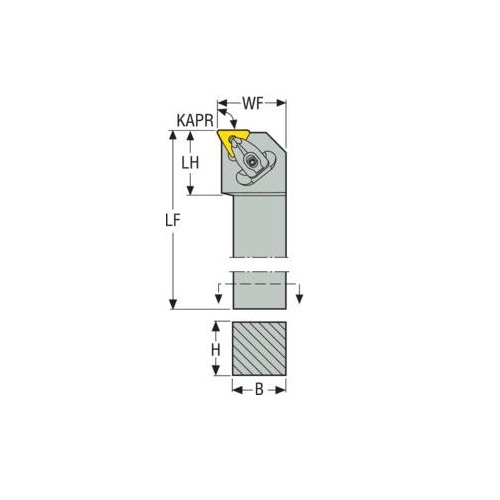

  • Functional Length (LF) 150mm
  • Insert Shape Code (SC) T
  • Head Length (LH) 30mm
  • Functional Width (WF) mm 32
  • Cutting Edge Length (mm) 22
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) F
  • Tool Type F Type
  • Height Of Tool Holder Shank (H) mm 25
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Connection Text Workpiece Side (ctws) TN2204
  • Shank Width (b) mm 25
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 2525
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0115012

Seco Turning External Toolholder Top Clamp 150 x 32 x 22mm Right 90° T Insert Shape DTFNR2525M22-M

Top Clamp - F Type - T Insert Shape - M Surface

$172.34
RRP $206.80
SAVE $34.46 (17%)
