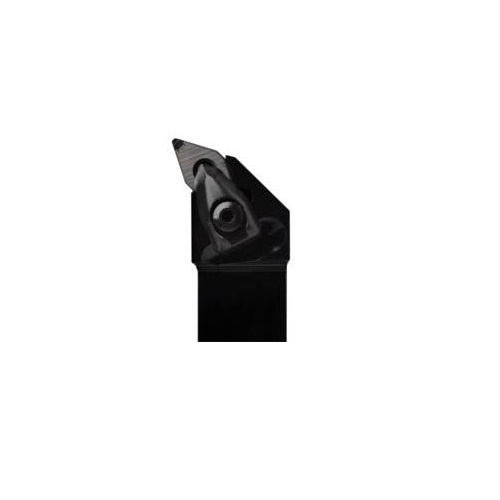

Seco Turning External Toolholder Top Clamp 150 x 26 x 11mm Right 107.5° D Insert Shape DDHNR2525M11

Description

Seco Turning External Toolholder Top Clamp Right 107.5° D Insert Shape DDHNR1616H11

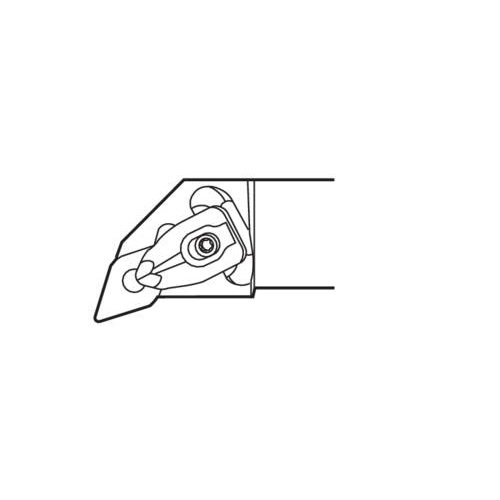

Turning External Toolholder (Top Clamp - H Type - D Insert Shape)

Top clamp using the center hole.
D insert shape.
H tool type.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114903

Brand Seco

Model Number 02588126

Barcode Number 88126025000103

Net Weight (kg) 0.703

Designation DDHNR2525M11

Functional Length (LF) 150mm

Insert Shape Code (SC) D

Head Length (LH) 26mm

Functional Width (WF) mm 32

Cutting Edge Length (mm) 11

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) H

Tool Type H Type

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 107.5 deg

Connection Text Workpiece Side (ctws) DN1104

Shank Width (b) mm 25

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 2525

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Top Clamp
