Specifications

AIMS SKU A0115385
Brand Seco
Model Number 00013319
Barcode Number 13319000000106
Net Weight (kg) 0.149

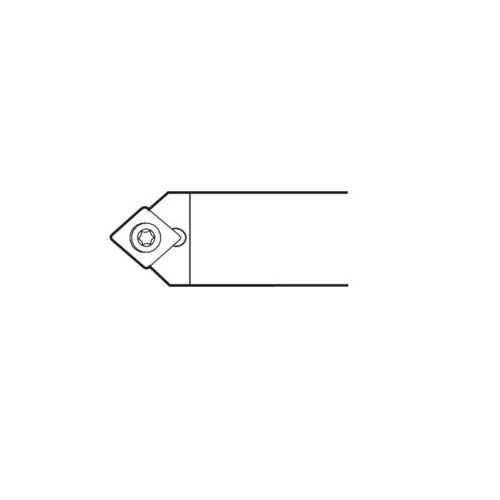

Designation SCMCN-8-3

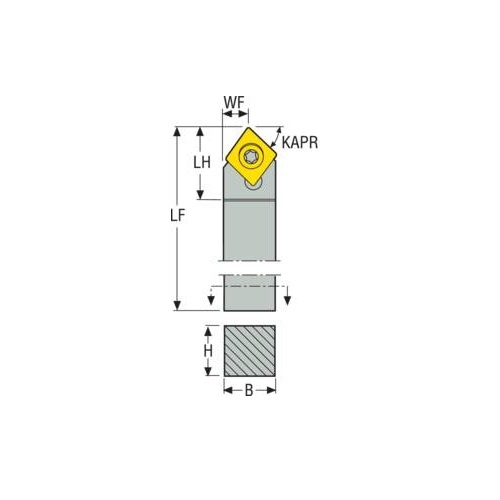

Shank Length (LS) mm 72.9
Insert Shape Code (SC) C
Insert Size Inscribed Circle Diameter (mm) 3
Functional Width (WF) mm 6.7
Cutting Edge Length (mm) 3
Inclination Angle (LAMS) 0.0 deg
Tool Cutting Edge Angle Code (KAPRC) M
Tool Type M Type
Functional Length (LF) 88.9mm
Height Of Tool Holder Shank (H) mm 12.7
Tool Cutting Edge Angle (KAPR) 50.0 deg
Functional Height (HF) mm 12.7
Connection Text Workpiece Side (ctws) CC09T3
Shank Width (b) mm 12.7
Direction Of Cutting (hand) Neutral
Connection Text Machine Side (CTMS) 12.7
Rake Angle Axial (gamp) 0.0 deg
Rake Angle Orthogonal (gamo) 0.0 deg

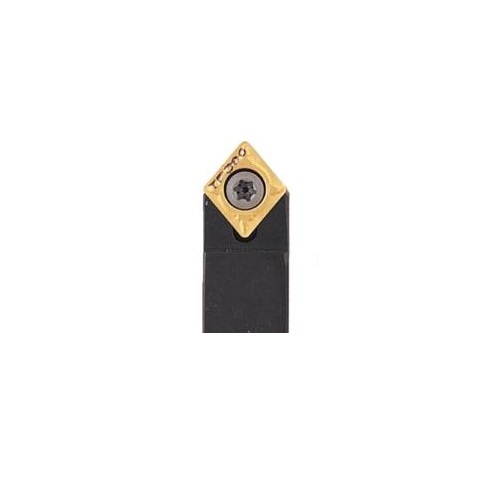

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Screw Lock
