Description

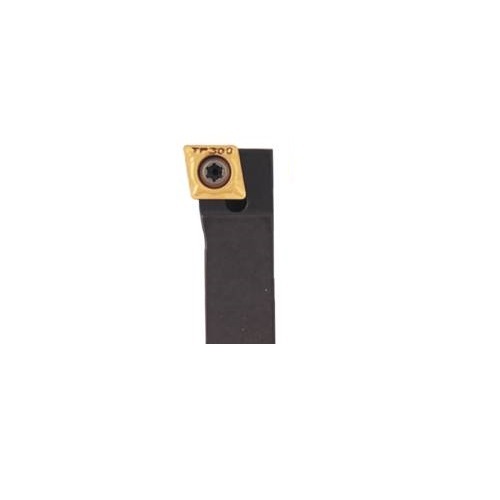

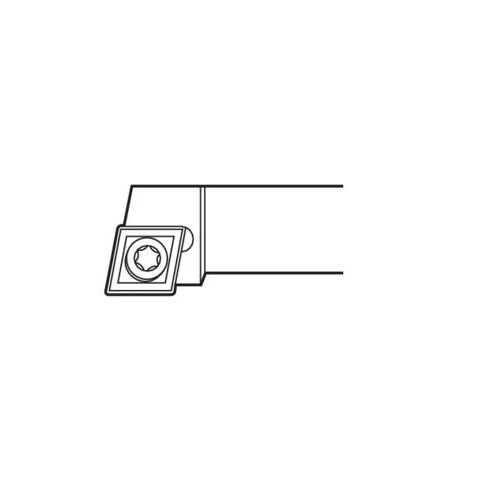

Seco Turning External Toolholder Screw Lock 88.9 x 15.9 x 3mm Right 90° C Insert Shape SCGCR-8-3

Turning External Toolholder (Screw Lock - G Type - C Insert Shape - 3mm I.C.)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115352

Brand Seco

Model Number 00013326

Barcode Number 13326000000104

Net Weight (kg) 0.157

Type Turning Toolholder

Designation SCGCR-8-3

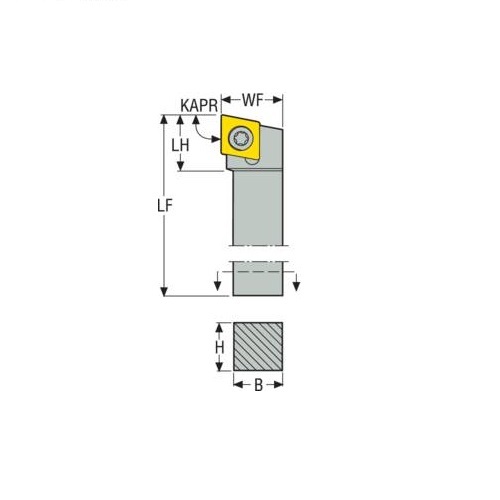

Shank Length (LS) mm 73.2

Functional Height (HF) mm 12.7

Version (internal/external/both) External

Rake Angle Axial (gamp) 0.0 deg

Insert Size Inscribed Circle Diameter (mm) 3

Inclination Angle (LAMS) 0.0 deg

Functional Length (LF) 88.9mm

Height Of Tool Holder Shank (H) mm 12.7

Connection Text Workpiece Side (ctws) CC09T3

Direction Of Cutting (hand) Right

Rake Angle Orthogonal (gamo) 0.0 deg

Functional Width (WF) mm 15.9

Tool Cutting Edge Angle Code (KAPRC) G

Insert Clamping System (ICS) Screw Lock

Tool Cutting Edge Angle (KAPR) 90.0 deg

Shank Width (b) mm 12.7

Connection Text Machine Side (CTMS) 12.7

Insert Shape Code (SC) C

Cutting Edge Length (mm) 3

Tool Type G Type
