Specifications
- AIMS SKU A0115351
- Brand Seco
- Model Number 00013327
- Barcode Number 13327000000101
- Net Weight (kg) 0.128
- Designation SCGCL-8-3
- Type Turning Toolholder

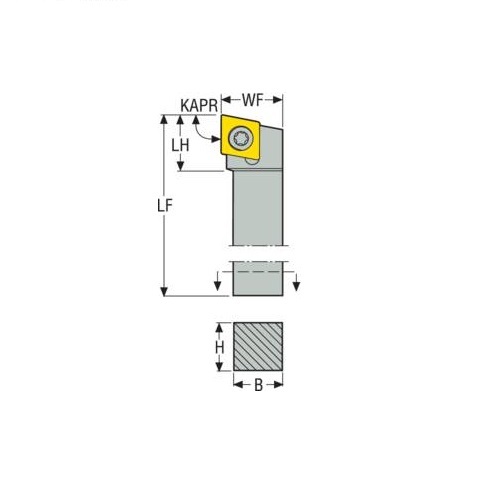

- Functional Length (LF) 88.9mm
- Rake Angle Orthogonal (gamo) 0.0 deg
- Insert Shape Code (SC) C
- Insert Size Inscribed Circle Diameter (mm) 3
- Functional Width (WF) mm 15.9
- Cutting Edge Length (mm) 3
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) G
- Tool Type G Type
- Rake Angle Axial (gamp) 0.0 deg
- Insert Clamping System (ICS) Screw Lock
- Height Of Tool Holder Shank (H) mm 12.7
- Tool Cutting Edge Angle (KAPR) 90.0 deg
- Connection Text Workpiece Side (ctws) CC09T3
- Shank Width (b) mm 12.7
- Version (internal/external/both) External
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 12.7
SKU: A0115351

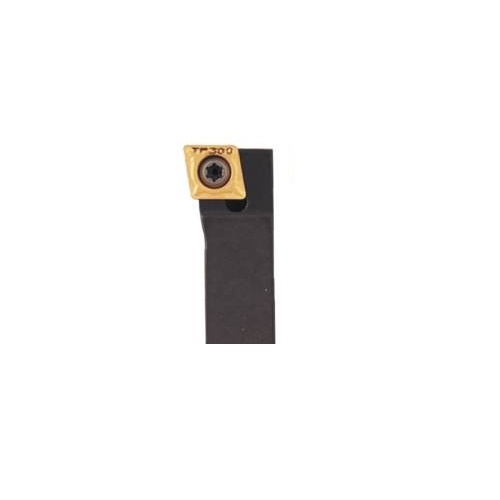

Seco Turning External Toolholder Screw Lock 88.9 x 15.9 x 3mm Left 90° C Insert Shape SCGCL-8-3
Screw Lock - G Type - C Insert Shape - 3mm I.C.
$152.24
SAVE $38.06 (20%)
