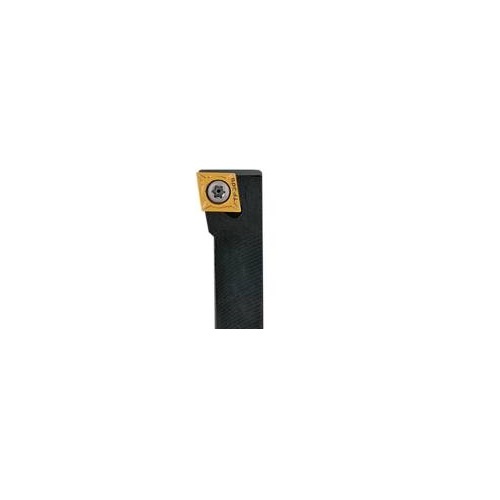

Seco Turning External Toolholder Screw Lock 80 x 15 x 9mm Left 90° C Insert Shape SCFCL1212F09

Turning External Toolholder (Screw Lock - F Type - C Insert Shape)

  • Screw lock.
  • C insert shape.
  • F tool type, offset shank with 0° end cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115348
  • Brand Seco
  • Model Number 75011632
  • Barcode Number 11632750000106
  • Net Weight (kg) 0.09
  • Type Turning Toolholder
  • Designation SCFCL1212F09

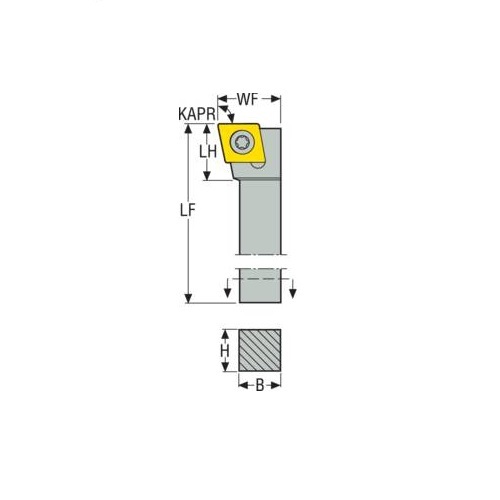

  • Functional Length (LF) 80mm
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Version (internal/external/both) External
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Functional Width (WF) mm 16
  • Tool Cutting Edge Angle Code (KAPRC) F
  • Insert Clamping System (ICS) Screw Lock
  • Connection Text Workpiece Side (ctws) CC09T3
  • Direction Of Cutting (hand) Left
  • Shank Type Square shank
  • Insert Shape Code (SC) C
  • Cutting Edge Length (mm) 9
  • Tool Type F Type
  • Height Of Tool Holder Shank (H) mm 12
  • Shank Width (b) mm 12
  • Connection Text Machine Side (CTMS) 1212
  • Head Length (LH) 15mm
  • Inclination Angle (LAMS) 0.0 deg
SKU: A0115348

Seco Turning External Toolholder Screw Lock 80 x 15 x 9mm Left 90° C Insert Shape SCFCL1212F09

Screw Lock - F Type - C Insert Shape

$146.96
RRP $183.70
SAVE $36.74 (20%)
