Description

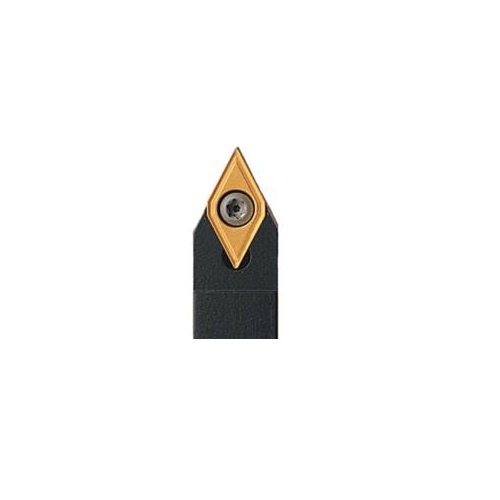

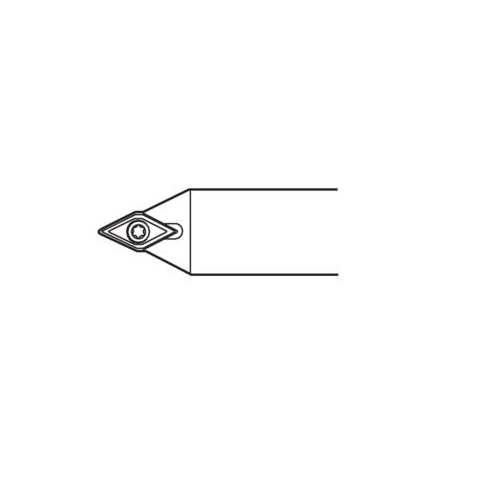

Seco Turning External Toolholder Screw Lock 152.3 x 12.7 x 3mm Neutral 62.5° D Insert Shape SDPCN-16-3

Turning External Toolholder (Screw Lock - P Type - D Insert Shape)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

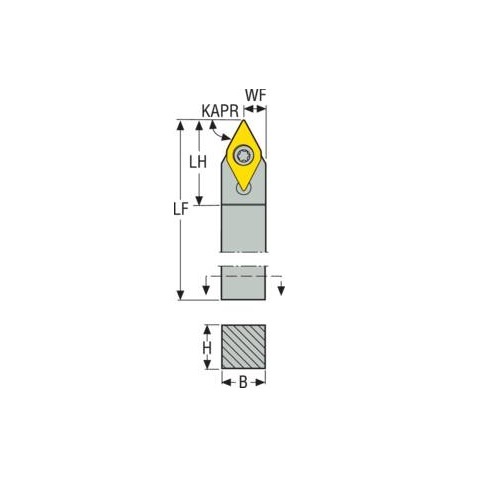

Specifications

AIMS SKU A0115595

Brand Seco

Model Number 00073942

Barcode Number 73942000000108

Net Weight (kg) 0.7

Type Turning Toolholder

Designation SDPCN-16-3

Insert Clamping System (ICS) Screw Lock

Connection Text Workpiece Side (ctws) DC11T3

Direction Of Cutting (hand) Neutral

Rake Angle Orthogonal (gamo) 0.0 deg

Insert Shape Code (SC) D

Cutting Edge Length (mm) 3

Tool Type P Type

Height Of Tool Holder Shank (H) mm 25.4

Shank Width (b) mm 25.4

Connection Text Machine Side (CTMS) 25.4

Shank Type Square shank

Insert Size Inscribed Circle Diameter (mm) 3

Inclination Angle (LAMS) 0.0 deg

Functional Length (LF) 152.3mm

Tool Cutting Edge Angle (KAPR) 62.5 deg

Version (internal/external/both) External

Rake Angle Axial (gamp) 0.0 deg

Functional Width (WF) mm 12.7

Tool Cutting Edge Angle Code (KAPRC) P
