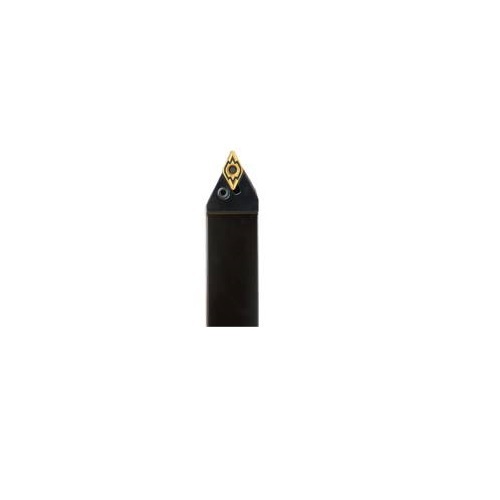

Seco Turning External Toolholder Pin Lock 150 x 12.5 x 11mm Left 63° D Insert Shape PDNNL2525M11

Description

Seco Turning External Toolholder Pin Lock Left 63° D Insert Shape PDNNL1616H11

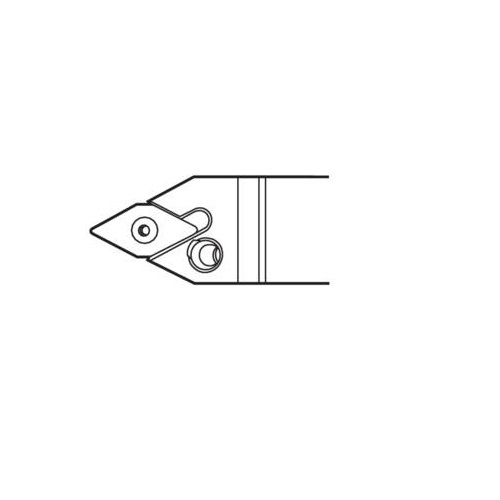

Turning External Toolholder (Pin Lock - N Type - D Insert Shape)

Pin Lock - Pin lock assembly, (NL/PL tool holders).
D insert shape.
N tool type.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115229

Brand Seco

Model Number 75079686

Barcode Number 79686750000103

Net Weight (kg) 0.667

Designation PDNNL2525M11

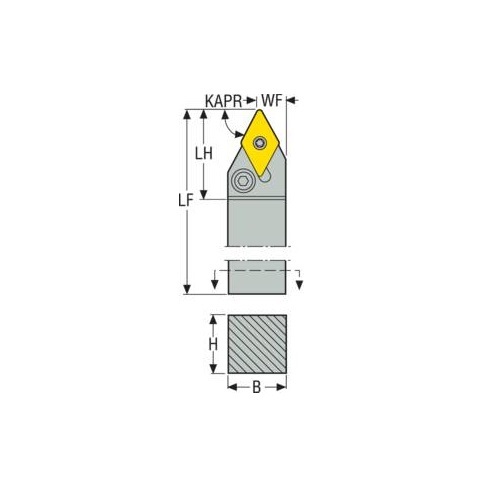

Functional Length (LF) 150mm

Insert Shape Code (SC) D

Head Length (LH) 30mm

Functional Width (WF) mm 12.5

Cutting Edge Length (mm) 11

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) N

Tool Type N Type

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 63.0 deg

Connection Text Workpiece Side (ctws) DN1104

Shank Width (b) mm 25

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 2525

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Pin Lock
