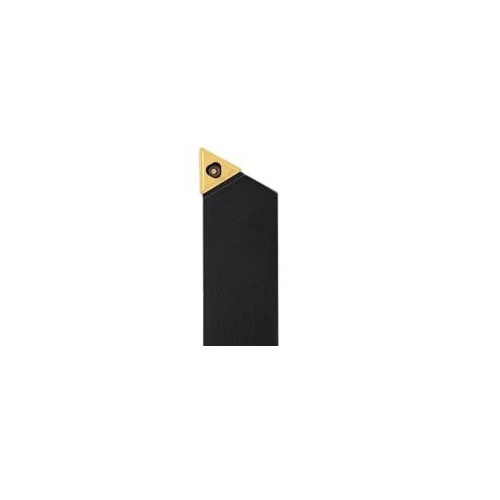

Seco Turning External Toolholder Pin Lock 114.3 x 13 x 2.5mm Left 90° T Insert Shape PTAPLS-8-2.5

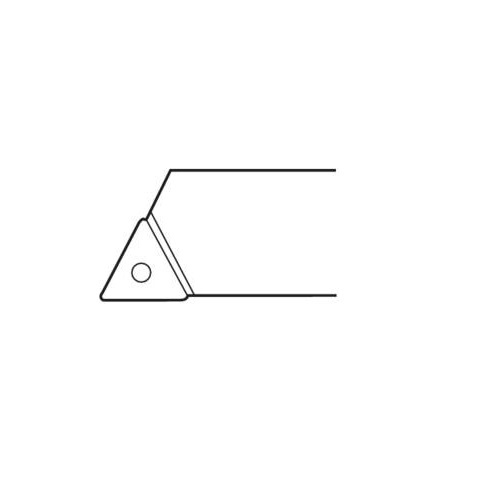

Turning External Toolholder (Pin Lock - A Type - T Insert Shape)

  • Pin Lock - Pin lock assembly, (NL/PL tool holders).
  • T insert shape.
  • A tool type, straight shank with 0° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115270
  • Brand Seco
  • Model Number 00015720
  • Barcode Number 15720000000108
  • Net Weight (kg) 0.2
  • Type Turning Toolholder
  • Designation PTAPLS-8-2.5
  • Insert Clamping System (ICS) Pin Lock
  • Connection Text Workpiece Side (ctws) TC1303
  • Direction Of Cutting (hand) Left
  • Rake Angle Orthogonal (gamo) 5.0 deg
  • Insert Shape Code (SC) T
  • Cutting Edge Length (mm) 2.5
  • Tool Type A Type

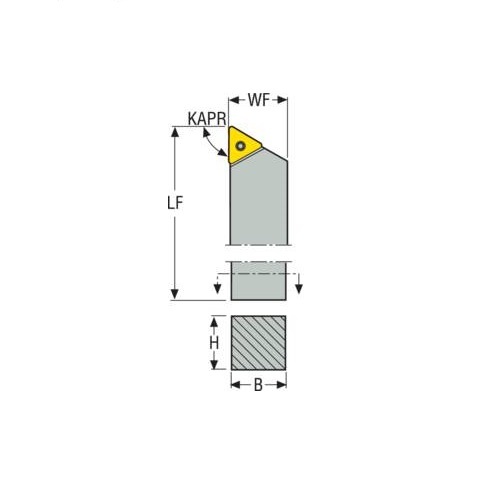

  • Height Of Tool Holder Shank (H) mm 12.7
  • Shank Width (b) mm 12.7
  • Connection Text Machine Side (CTMS) 12.7
  • Shank Type Square shank
  • Insert Size Inscribed Circle Diameter (mm) 2.5
  • Inclination Angle (LAMS) 0.0 deg
  • Functional Length (LF) 114.3mm
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Version (internal/external/both) External
  • Rake Angle Axial (gamp) 0.0 deg
  • Functional Width (WF) mm 13
  • Tool Cutting Edge Angle Code (KAPRC) A
SKU: A0115270

Seco Turning External Toolholder Pin Lock 114.3 x 13 x 2.5mm Left 90° T Insert Shape PTAPLS-8-2.5

Pin Lock - A Type - T Insert Shape

$134.64
RRP $168.30
SAVE $33.66 (20%)
