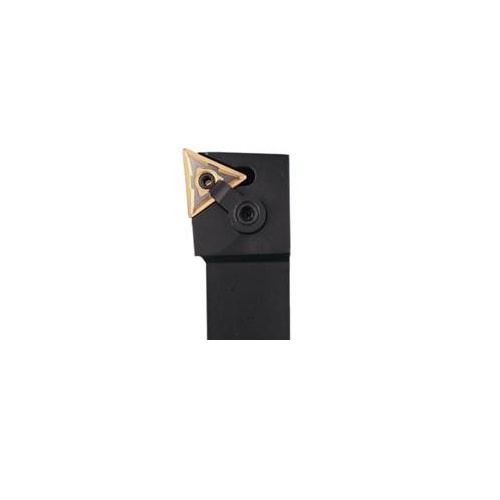

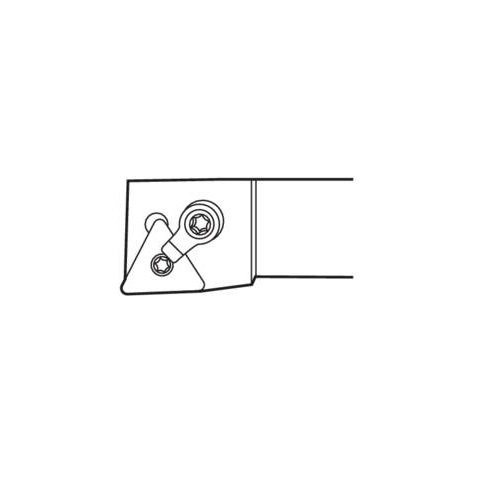

Seco Turning External Toolholder Multiple Lock 152.4 x 31.8 x 4mm Right 95° T Insert Shape MTLNR-16-4

Turning External Toolholder (Multiple Lock - L Type - T Insert Shape)

Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
T insert shape.
L tool type, offset shank with –5° end or side cutting edge.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115164

Brand Seco

Model Number 00042542

Barcode Number 42542000000100

Net Weight (kg) 0.8

Type Turning Toolholder

Designation MTLNR-16-4

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) TN2204

Direction Of Cutting (hand) Right

Rake Angle Orthogonal (gamo) -5.0 deg

Insert Shape Code (SC) T

Ramping Angle Maximum (RPMX) 3.0 deg

Inclination Angle (LAMS) -5.0 deg

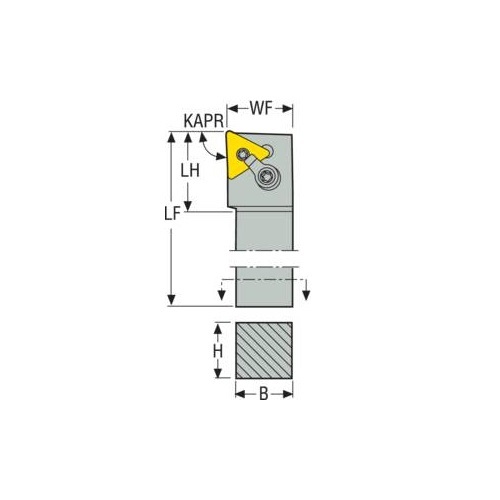

Functional Length (LF) 152.4mm

Shank Length (LS) mm 119.4

Functional Height (HF) mm 25.4

Shank Width (b) mm 25.4

Connection Text Machine Side (CTMS) 25.4

Shank Type Square shank

Cutting Diameter Internal Minimum 3 (mm) 350

Functional Width (WF) mm 31.8

Tool Cutting Edge Angle Code (KAPRC) L

Insert Clamping System (ICS) Multiple Lock

Height Of Tool Holder Shank (H) mm 25.4

Cutting Depth Maximum (cdx) mm 0.5

Version (internal/external/both) External

Rake Angle Axial (gamp) -5.0 deg

Insert Size Inscribed Circle Diameter (mm) 4

Cutting Edge Length (mm) 4

Tool Type L Type

Insert Seat Size Code (SSC) 2204
