Specifications
- AIMS SKU A0115101
- Brand Seco
- Model Number 00013033
- Barcode Number 13033000000101
- Net Weight (kg) 0.77
- Type Turning Toolholder
- Designation MCRNR-16-4D

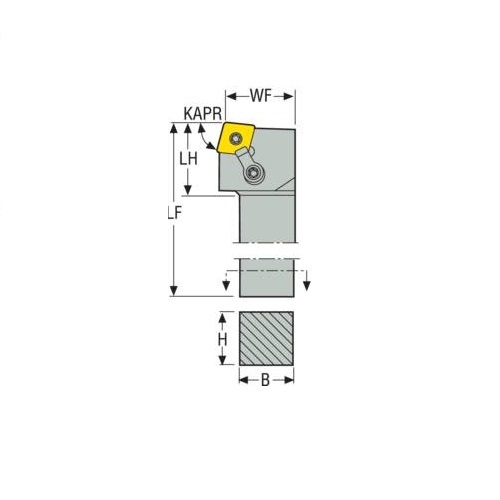

- Tool Cutting Edge Angle (KAPR) 75.0 deg
- Connection Text Workpiece Side (ctws) CN1204
- Direction Of Cutting (hand) Right
- Rake Angle Orthogonal (gamo) -6.0 deg
- Insert Shape Code (SC) C
- Ramping Angle Maximum (RPMX) 4.4 deg
- Inclination Angle (LAMS) -6.0 deg
- Functional Length (LF) 152.4mm
- Shank Length (LS) mm 120.5
- Functional Height (HF) mm 25.4
- Shank Width (b) mm 25.4
- Connection Text Machine Side (CTMS) 25.4
- Shank Type Square shank
- Cutting Diameter Internal Minimum 3 (mm) 160
- Functional Width (WF) mm 31.8
- Tool Cutting Edge Angle Code (KAPRC) R
- Insert Clamping System (ICS) Multiple Lock
- Height Of Tool Holder Shank (H) mm 25.4
- Cutting Depth Maximum (cdx) mm 1.5
- Version (internal/external/both) External
- Rake Angle Axial (gamp) -6.0 deg
- Insert Size Inscribed Circle Diameter (mm) 4
- Cutting Edge Length (mm) 4
- Tool Type R Type
- Insert Seat Size Code (SSC) 1204
SKU: A0115101

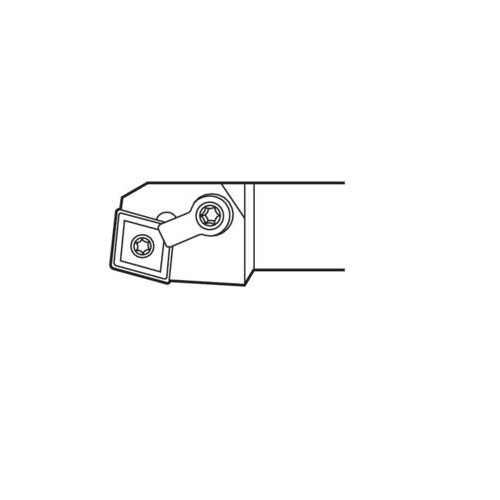

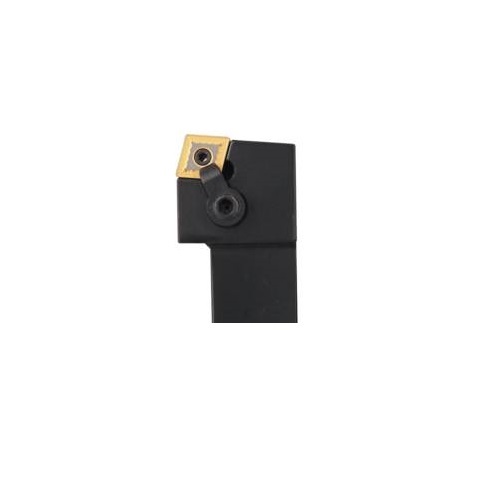

Seco Turning External Toolholder Multiple Lock 152.4 x 31.8 x 4mm Right 75° C Insert Shape MCRNR-16-4D
Multiple Lock - R Type - C Insert Shape
$158.40
SAVE $39.60 (20%)
