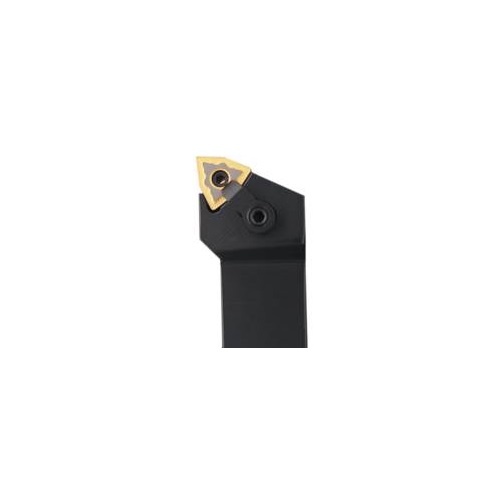

Seco Turning External Toolholder Multiple Lock 101.6 x 22.2 x 3mm Left 95° W Insert Shape MWLNL-10-3A

Turning External Toolholder (Multiple Lock - L Type - W Insert Shape - A Surface)

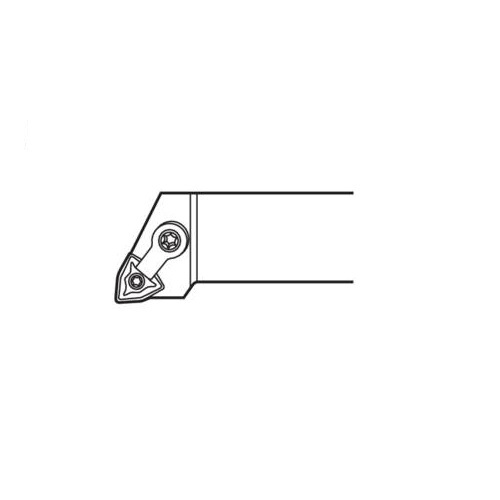

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • W insert shape.
  • L tool type, offset shank with –5° end or side cutting edge.
  • A surface, qualified back and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115181
  • Brand Seco
  • Model Number 75056400
  • Barcode Number 56400750000104
  • Net Weight (kg) 0.25
  • Type Turning Toolholder
  • Designation MWLNL-10-3A

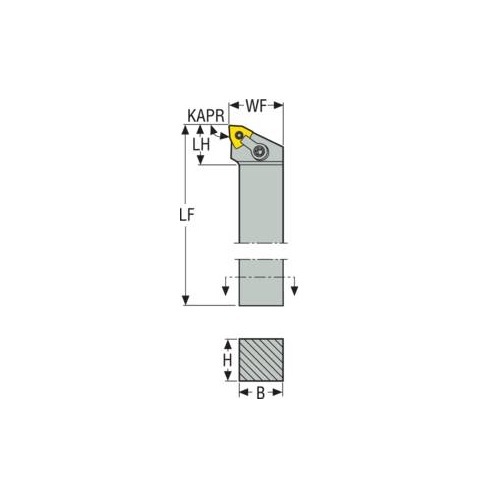

  • Functional Height (HF) mm 15.9
  • Shank Width (b) mm 15.8
  • Connection Text Machine Side (CTMS) 15.88
  • Rake Angle Radial (gamf) -6.0 deg
  • Insert Shape Code (SC) 0
  • Ramping Angle Maximum (RPMX) 7.8 deg
  • Inclination Angle (LAMS) -6.0 deg
  • Functional Length (LF) 101.6mm
  • Height Of Tool Holder Shank (H) mm 15.8
  • Cutting Depth Maximum (cdx) mm 4.9
  • Version (internal/external/both) External
  • Rake Angle Axial (gamp) -5.4 deg
  • Shank Type Square shank
  • Cutting Diameter Internal Minimum 3 (mm) 125
  • Functional Width (WF) mm 22.2
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Insert Clamping System (ICS) Multiple Lock
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Connection Text Workpiece Side (ctws) WN0604
  • Direction Of Cutting (hand) Left
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Insert Size Inscribed Circle Diameter (mm) 3
  • Cutting Edge Length (mm) 3
  • Tool Type L Type
  • Shank Length (LS) mm 73.6
SKU: A0115181

Seco Turning External Toolholder Multiple Lock 101.6 x 22.2 x 3mm Left 95° W Insert Shape MWLNL-10-3A

Multiple Lock - L Type - W Insert Shape - A Surface

$134.64
RRP $168.30
SAVE $33.66 (20%)
