Specifications
- AIMS SKU A0114809
- Brand Seco
- Model Number 00073861
- Barcode Number 73861000000102
- Net Weight (kg) 0.86
- Type Turning Toolholder
- Designation CTFNR-16-2

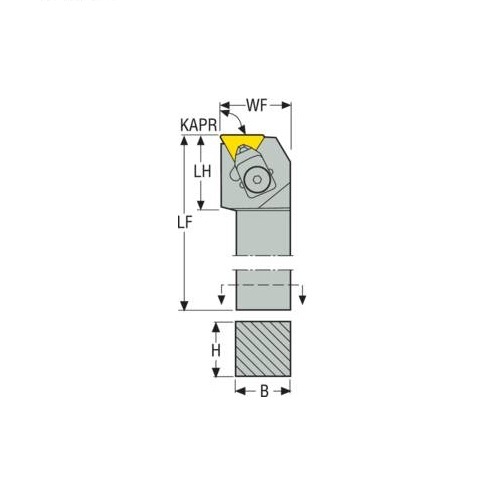

- Functional Length (LF) 153mm
- Tool Cutting Edge Angle (KAPR) 90.0 deg
- Version (internal/external/both) External
- Rake Angle Orthogonal (gamo) -6.0 deg
- Functional Width (WF) mm 31.8
- Tool Cutting Edge Angle Code (KAPRC) F
- Insert Clamping System (ICS) Clamp Lock
- Connection Text Workpiece Side (ctws) TN1103
- Direction Of Cutting (hand) Right
- Shank Type Square shank
- Cutting Edge Length (mm) 2
- Tool Type F Type
- Height Of Tool Holder Shank (H) mm 25.4
- Shank Width (b) mm 25.4
- Connection Text Machine Side (CTMS) 25.4
- Insert Shape Code (SC) T
- Inclination Angle (LAMS) -6.0 deg
SKU: A0114809

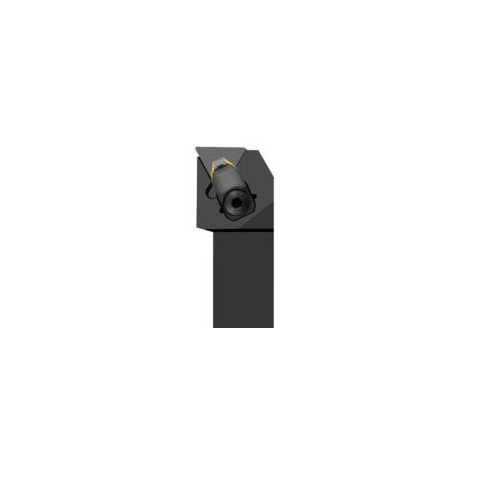

Seco Turning External Toolholder Clamp Lock 153 x 31.8 x 2mm Right 90° T Insert Shape CTFNR-16-2
Clamp Lock - F Type - T Insert Shape
$241.12
SAVE $60.28 (20%)
