Specifications
- AIMS SKU A0114769
- Brand Seco
- Model Number 00073898
- Barcode Number 73898000000108
- Net Weight (kg) 1.26
- Type Turning Toolholder
- Designation CRGNR-20-4

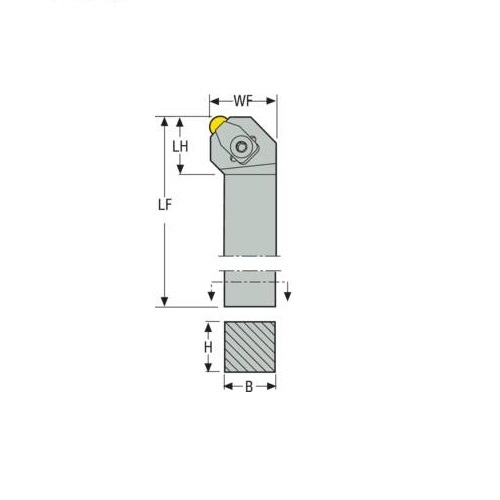

- Functional Length (LF) 152.4mm
- Tool Cutting Edge Angle (KAPR) 0
- Version (internal/external/both) External
- Rake Angle Orthogonal (gamo) -5.0 deg
- Functional Width (WF) mm 38.1
- Tool Cutting Edge Angle Code (KAPRC) S
- Insert Clamping System (ICS) Clamp Lock
- Connection Text Workpiece Side (ctws) RN1203
- Direction Of Cutting (hand) Right
- Shank Type Square shank
- Cutting Edge Length (mm) 4
- Tool Type G Type
- Height Of Tool Holder Shank (H) mm 31.8
- Shank Width (b) mm 31.8
- Connection Text Machine Side (CTMS) 31.75
- Insert Shape Code (SC) R
- Inclination Angle (LAMS) -5.0 deg
SKU: A0114769

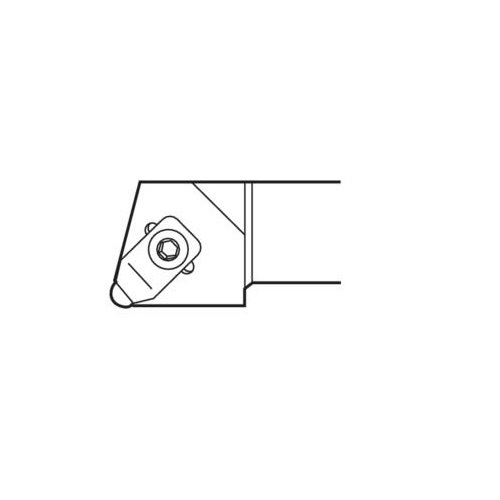

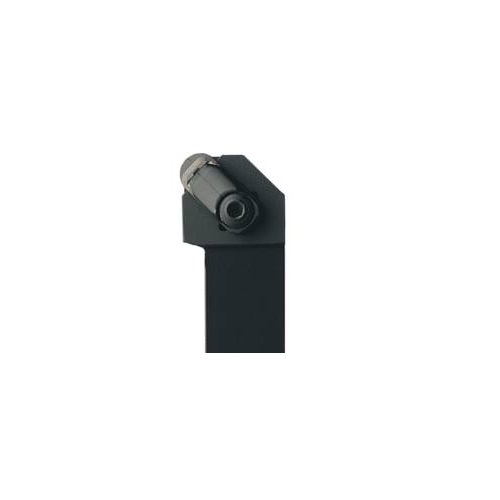

Seco Turning External Toolholder Clamp Lock 152.4 x 38.1 x 4mm Right 0° R Insert Shape CRGNR-20-4
Clamp Lock - G Type - R Insert Shape
$306.24
SAVE $76.56 (20%)
